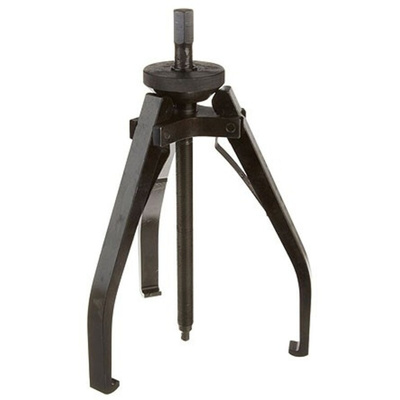

TMMP 3X300, SKF Mechanical Bearing Puller, 300 mm Capacity

SKF Three-Arm Bearing Puller, 45 to 300mm Grip - TMMP 3X300

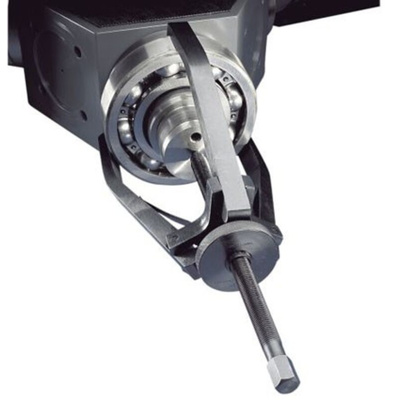

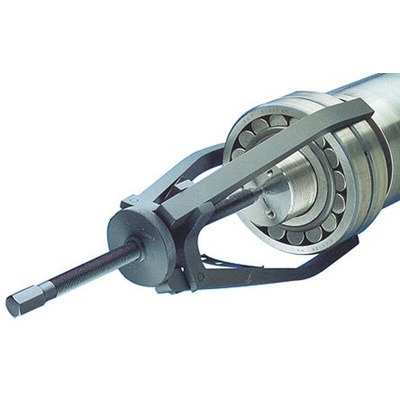

Remove your bearings from a mechanical shaft using this SKF bearing puller. It lets you dislodge a bearing without causing damage to the seating. The hardened carbon steel material has excellent tensile strength and is resistant to impact, which makes it reliably long-lasting. You can loosen the ball bearing by placing the jaws around it and twisting the handles firmly until it comes off. Make sure you position the cone spindle device in the centre so the twisting movement is stable.

• 50.0kN maximum withdrawal force for quick and reliable bearing removal
• Spring device separates arms for convenient handling
• Broad grip range between 45mm and 300mm for a range of applications
• Simple design for hassle-free manual operation

Applications

• Machine repair
• Industrial manufacturing
• Aviation industry
• Material handling
• Construction industry

How does this bearing puller work?

This device has three arms or jaws, each of which is 240mm long. You can adjust them to fit the width of your bearing and rely on the hooked tips to maintain a secure grip. The cone spindle lets you position the arms precisely to allow equal load distribution for effective balance and stability.
