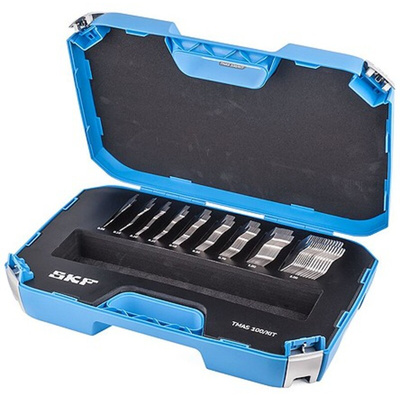

TMAS 100/KIT, SKF Shim Kit, Stainless Steel - Blue

SKF Stainless Steel Shim Kit -TMAS100/KIT

This shim kit from SKF is a must-have any time you need to make accurate machine adjustments in your alignment process. It contains 170 shims of varying thicknesses. Each shim is made from high-quality stainless steel that has been fully de-burred to remove any imperfections. This means you can count on the measurements being accurate and precise. The thickness is clearly marked on each shim in the kit, and they can be combined to provide any thickness to an accuracy of 0.05 mm.

Features and Benefits

• Made from 304S31 stainless steel (high resistance to heat and corrosion)
• Length of 100 mm
• Width of 100 mm
• Thicknesses of 0.05 mm, 0.1 mm, 0.2 mm, 0.25 mm, 0.4 mm, 0.5 mm, 0.7 mm, 1 mm and 2 mm

Application Information

• Carpentry
• Masonry
• Stringed instrument manufacture and repair

Can I reuse the shims in this kit?

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007

These shims have been designed for reuse. They are made from high-quality stainless steel to make them long-lasting and easy to fit and remove.

How many shims of each thickness are in the kit?

There are 20 each of the 0.05 mm, 0.1 mm, 0.2 mm, 0.25 mm, 0.4 mm, 0.5 mm, 0.7 mm and 1 mm thickness shims, along with 10 of the 2 mm shims.

Datasheet
