TKES 10F, SKF Endoscope, 1000mm Probe Length, 640 x 480pixelek Resolution, LED Illumination, Инспекционная камера

SKF Endoscope, 1m Probe Length, LED Illumination - TKES10F

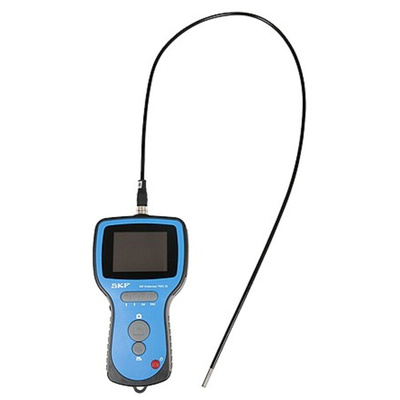

This endoscope from SKF is a compact tool for the internal inspection of your machinery. Feed the high-resolution camera, which is mounted on a one-metre flexible insertion tube, into hard-to-reach places to check for wear or malfunctions. LED lights mean even dark areas can be checked. Pictures are displayed on the device’s 3.5-inch wide-angle screen, or they can be relayed to a monitor via the TV-out adapter. Up to 50,000 photos or 120 minutes of video can be stored on the instrument or transferred via the SD card to a PC for later viewing. Powerful magnets on the unit allow for hands-free operation.

• Narrow insertion tube tip of 5.8 mm
• Four adjustable white LED lights
• 67° field of view
• 45° side-view adapter gives a 90° view
• Rechargeable 3.7 V lithium-polymer battery
• Four hours operation after two hours charge
• Power adapter, USB, video cable and SD card included
• Operating temperature range of -20°C to +60°C

Application Information

• Manufacturing
• Automotive industries
• Production lines

How is the endoscope supplied?

The endoscope comes in a durable carry case and is supplied complete with cables, a mains charger and a cleaning kit.

Datasheet

Instructions

Catalogue - TKES
