Laserliner Inspection Camera

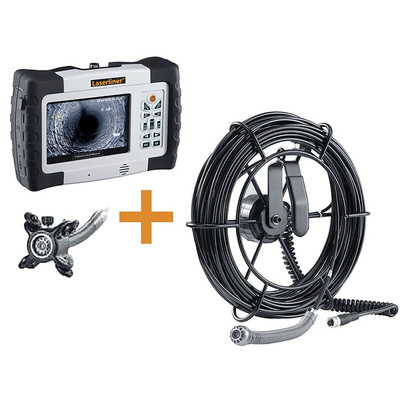

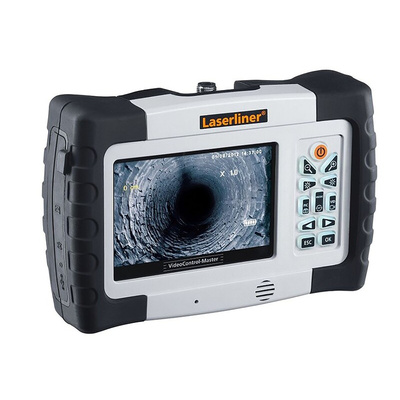

The Laserliner 640x480pixel resolution pipecontrol mobile inspection camera set has a camera snake with 25 mm head. This handheld unit has a 5in, TFT colour display with 2x digital zoom and 90° picture rotation. The camera snake is fully flexible and comes with 12, high performance LEDs for powerful object lighting. It has an integrated still image and a video recording function with snapshot option for image documentation during video recording and an adjustable, digital zoom function with large and high-resolution zoom range. Data storage on SD card is up to 16GB.

Features and Benefits

External monitors operated via TV Out connection
Multilingual on-screen-display
Interchangeable camera unit
Li-ion battery for up to 4 hours of continuous operation
No pull-back
Field of vision is 73⁰
Safety lens/ camera protector
Camera head diameter is 25mm
Minimum focus distance is 50mm
Probe diameter is 25mm

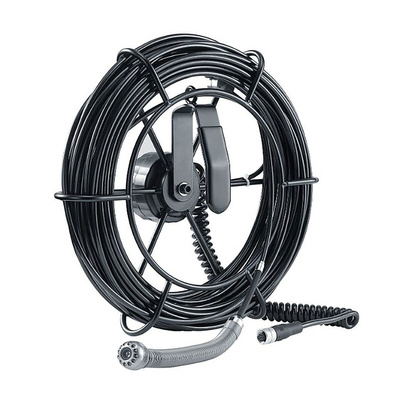

Sturdy, hand-held reel with 20m cable
Stainless steel housing

Certifications

IP67 rated
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
