Siretta ALPHA1A/1M/SMAM/S/S/11 T-Bar Multiband Antenna with SMA Connector, 2G (GSM/GPRS), 3G (UTMS), ISM Band, WiFi, Антенна

ALPHA 1A GSM/GPRS/3G/WiFi/ISM T-Bar Antenna, Siretta

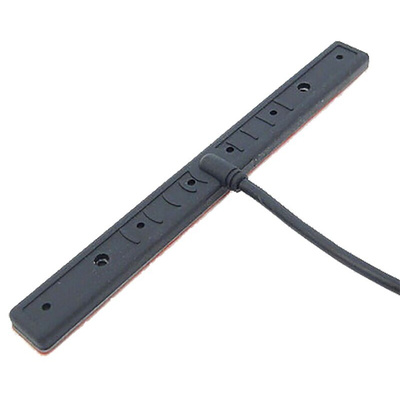

The ALPHA 1A is a low profile, T-Bar antenna tuned to quad band GSM/GPRS/3G/WiFi/ISM frequencies. Measuring 104 x 10.8 x 4 mm, The ALPHA 1A is easily mounted onto most surfaces using its adhesive base. It achieves a peak gain of 3.8 dBi.

The Alpha 1A is supplied with a choice of RG174 coaxial cable lengths, all with an SMA male connector.

ALPHA1A/1M/SMAM/S/S/11 - 1 metre cable (RS 124-8662)
ALPHA1A/2.5M/SMAM/S/S/11 - 2.5 metre cable (RS 124-8664)

Operating Temperature: -20 to 80°C
Impedance: 50 Ω
Gain (peak): 3.8 dBi
VSWR: 2.0:1 max
Polarisation: Vertical / omnidirectional

Operating Frequencies
Quad Band GSM/GPRS & 2G: 950, 900, 1800, 1900MHz
3G/UMTS: 2100MHz
WiFi/Bluetooth/ZigBee: 2400 MHz
ISM: 868 MHz, 915 MHz

Dimensions
Length: 104 mm
Width: 10.8 mm
Height: 4 mm

Multi-band Antennas, Siretta

ALPHA1A Antenna Datasheet
