DELTA 14/15 2.4 GHz WiFi/WLAN/Bluetooth Antennas, Siretta
The Delta 14 and Delta 15 are direct connect, stubby antennas tuned to 2.4 GHz - WiFi / WLAN / Bluetooth / ZigBee frequencies. These antennas offer a small and compact, cable-free solution which is ideal for use with WiFi enabled terminals and modems.
These antennas are compatible replacements for many common WiFi modems such as Netgear and TP-link.
The Delta 14 and 15 are supplied with a reverse polarity (RP) SMA male connectors.
DELTA14/SMAM/S/RP/11 – Straight connector (RS 124-8671)

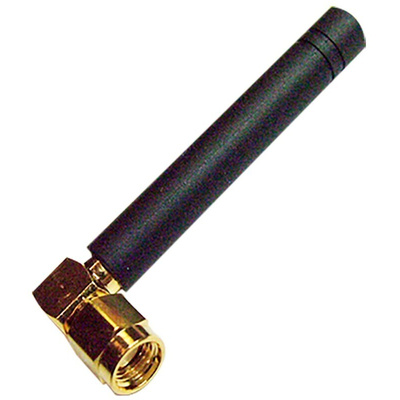

DELTA15/SMAM/RA/RP/11 – Right angled connector (RS 124-8672)
Operating Temperature: -20 to +60˚C
Storage Temperature: -30 to +75˚C
Impedance: 50 Ω
Gain: 2 dBi
VSWR: 2 max
Polarisation: Vertical
Radiation: Omni directional
Operating Frequencies: 2.4 GHz to 2.5 GHz (WiFi / WLAN / Bluetooth / ZigBee)
Length: 56 mm (Delta 14), 53.5 mm (Delta 15)
Connector: Reverse Polarity SMA Male
2.4GHz Antennas
Техническая спецификация
