Siretta DELTA6A/x/SMAM/S/S/11 Whip Multiband Antenna with SMA Connector, 2G (GSM/GPRS), 3G (UTMS), 4G, 4G (LTE Cat-M),, Антенна

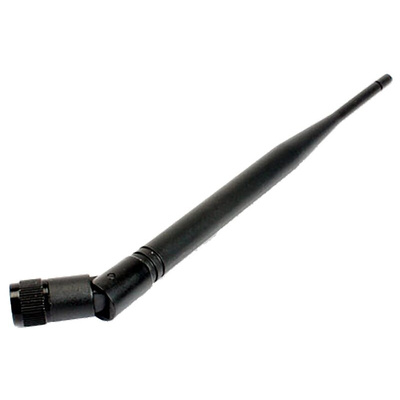

DELTA 6A GSM/GPRS/3G/ISM Direct Connect, Hinged Antenna

The Delta 6A is a 1/2 wave, quad band GSM/GPRS/3G and omnidirectional antenna. A peak gain of 6.8 dBi makes the DELTA 6A a high performing whip antenna. The hinge joint gives flexibility with positioning through 0°, 45° & 90° rotations.

The Delta 6A is supplied with an SMA male connector.

Operating Temperature: -20 to +60°C
Impedance: 50 Ω
Gain (peak): 6.8 dBi
VSWR: <2:1
Polarisation: Vertical

Operating Frequencies
Quad Band GSM/GPRS: 850, 900, 1800, 1900 MHz
3G / UMTS: 2100 MHz
ISM: 868 MHz, 915 MHz

Dimensions
Length: 196 mm
Width (max): 12.5 mm

Multi-band Antennas, Siretta

DELTA6A Antenna Datasheet
