Siretta MIKE1A/5M/SMAM/S/S/20 Rod Antenna with SMA Connector, 2G (GSM/GPRS), 3G (UTMS), Антенна

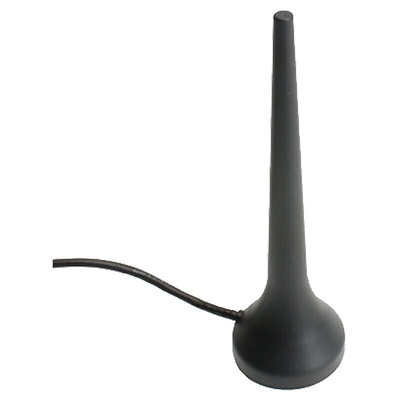

MIKE 1A Quad Band GSM/GPRS/3G 1/4 Wave Magnetic Whip Antenna, Siretta

The Mike 1A is a 1/4 wave, magnetic mount whip antenna tuned to quad band GSM/GPRS and 3G frequencies. Its strong magnetic base enables fast installation and is easily repositionable so you can get the best signal. The Mike 1A has a peak gain of 3 dBi and provides a good, reliable signal for your M2M application.

The Mike 1A is available with a range of RG174 coaxial cable lengths and connectors:

MIKE1A/1.2M/SMAM/S/S/20 - 1.2 m cable, SMA male connector (RS 124-8689)
MIKE1A/2.5M/FMEF/S/S/20 - 2.5 m cable, FME female connector (RS 124-8690)
MIKE1A/2.5M/SMAM/S/S/12 - 2.5 m cable, SMA male connector (RS 124-8873)
MIKE1A/5M/FMEF/S/S/20 - 5 m cable, FME female connector (RS 124-8691)
MIKE1A/5M/SMAM/S/S/20 - 5 m cable, SMA male connector (RS 124-8692)

Operating Temperature: -40 to +85°C
Impedance: 50 Ω
Gain: 3 dBi
VSWR: <1.5:1
Polarisation: Vertical
Radiating Element: 1/4 wave whip

Operating Frequencies
Quad Band GSM/GPRS: 850, 900, 1800, 1900 MHz
3G: 2.1 GHz

Dimensions
Height: 105 mm
Width: 34 mm

Multi-band Antennas, Siretta

MIKE1A Antenna Datasheet
