Siretta TANGO1/1M/SMAM/S/S/4 Multiband Antenna with SMA Connector, 2G (GSM/GPRS), 3G (UTMS), 4G (LTE), WiFi, Антенна

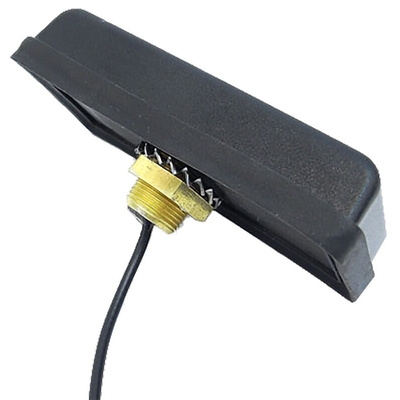

TANGO 1 3G/GSM/GPRS/WiFi Low Profile Antenna, Siretta

The TANGO 1 series antennas are low profile, and housed in a toughened plastic enclosure. A rubber seal prevents moisture ingress and is tough enough to withstand industrial washers on mobile applications such as trucks or buses. The antennas are tuned 1/4 wave dipole covering quad band GSM/GPRS, 3G and WiFi frequencies. They have an integral groundplane and are secured with using a through hole, threaded nut.

Supplied with a 1 meter RG174 cable and a choice of two connectors:

TANGO1/1M/FMEF/S/S/4\tFME female connector (RS 124-8698)
TANGO1/1M/SMAM/S/S/4\tSMA male connector (RS 124-8699)

Antenna Specifications
Operating Temperature: -40 to +85C
Impedance: 50 Ω
Gain: 2 dBi
VSWR: <1.5:1
Polarisation: Vertical

Operating Frequencies
850, 900, 1800, 1900 MHz (Quad Band GSM/GPRS)
2.1 GHz (3G)
2.4 GHz (WiFi)

Dimensions
Length: 95 mm
Width: 45 mm
Height: 17 mm

Multi-band Antennas, Siretta

TANGO1 Antenna Datasheet
