Siretta TANGO16/3M/SMAM/SMAM/S/S/26 Dome Multiband Antenna with SMA Connector, 2G (GSM/GPRS), 3G (UTMS), ISM Band, Антенна

TANGO 16 Combined GSM/GPRS/3G/ISM/GPS Antenna, Siretta

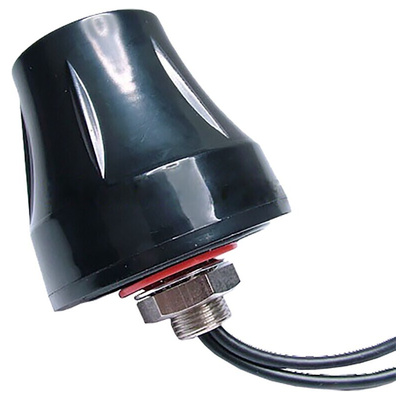

The TANGO 16 antenna family are an IP67 rated and fully weatherproof combination GSM/GPS, 3G, ISM antenna intended for outdoor equipment. They are mounted using an M12 stud and the housing measures 50 mm in diameter and stands 48 mm tall. A rubber O-Ring ensure no water ingress.

The antenna has a GSM gain of 1.95 dBi and the GPS antenna has an LNA gain of 28 dB.

Available with two cable lengths:

TANGO16/3M/SMAM/SMAM/S/S/26 - 3 metre cable (RS 124-8707)
TANGO16/5M/SMAM/SMAM/S/S/26 - 5 metre cable (RS 124-8708)

Operating Temperature: -40 to +85°C
Impedance: 50 Ω
GSM Gain (peak): 1.95 dBi
3G Gain: 2.33 dBi
ISM Gain: 1.5 dBi to 2 dBi
GPS Gain: 28 dB
VSWR: <1.5
GSM Polarisation: Linear
GPS Polarisation: RHCP
Protection: IP67 Rated
Cable: 2 x RG174 coaxial cable
Connectors: 2 x SMA Male

Operating Frequencies
850, 900, 1800, 1900 MHz (Quad Band GSM/GPRS)
2.1 GHz (3G)
868 MHz, 915 MHz (ISM)
1575.42 MHz (GPS)
