Siretta TANGO17/3M/SMAM/S/S/26 Dome Antenna with SMA Connector, 2G (GSM/GPRS), 3G (UTMS), Антенна

TANGO 17 Quad Band GSM/GPRS/3G IP67 Antenna, Siretta

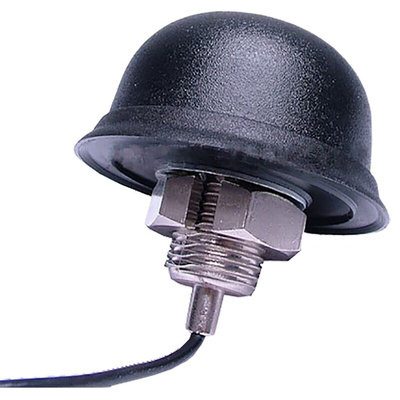

The Tango 17 antenna family are virtually indestructible, bell-shaped antennas tuned to the mobile phone (cellular) quad band GSM/GPRS and 3G operating frequencies. The antenna housing is made from thick, ABS plastic and a rubber seal gasket ensures its IP67 rating. You can mount it securely inside or outside using its large M20 screw thread.

The TANGO 17 antennas are suited to demanding environments such as weather or vandal prone areas.
Available with a choice of two RG174 coaxial cable lengths, both with SMA male connector.

TANGO17/3M/SMAM/S/S/26 - 3 metre cable (RS 124-8709)
TANGO17/5M/LL/SMAM/S/S/26 - 5 metre cable (RS 124-8710)

Operating Temperature: -40 to +85C
Impedance: 50 Ω
Gain: 2 dBi
VSWR: <2
Polarisation: Linear
Protection: IP67 Rated
Cable: RG174
Diameter: 68 mm
Height: 34.8 mm

Operating Frequencies
850, 900, 1800, 1900 MHz (Quad Band GSM/GPRS)
2.1 GHz (3G)

Mobile Communication Antenna (GSM/GPRS/2G/3G/4G), Siretta

TANGO17 Antenna Datasheet
