Siretta QUARTZ-LITE-W21-UMTS(EU) + ACCESSORIES 3G, 1 x SIM, 2 x LAN Ports

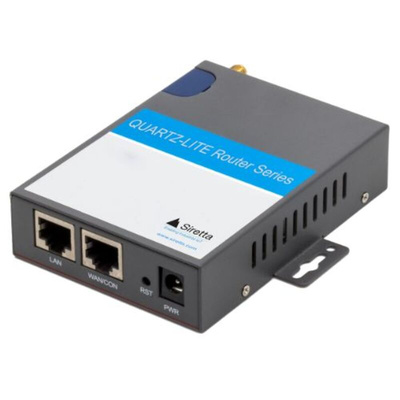

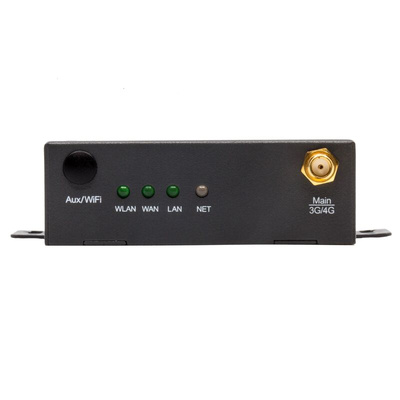

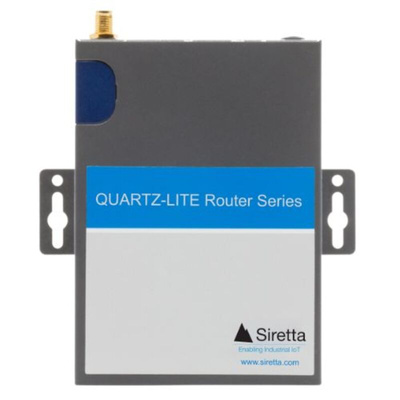

Siretta QUARTZ-LITE 3G WiFi Dual LAN Router With Accessories

Siretta’s QUARTZ-LITE-UMTS router is a high speed industrial router designed for transferring large amounts of data via the cellular network. The QUARTZ-LITE-UMTS’s fast data transfer capability reaches up to 21Mbps download and up to 5.76Mbps upload speed. It also has fallback to 2.5G communication should 3G/UMTS be unavailable. It is well suited for IoT/mobile broadband applications, offering reliable, secure wireless connectivity.

Features & Benefits

European 3G / UMTS bands
Dual LAN
2.4 GHz Wi-Fi support
High speed data via UMTS network
Strong resistance to electromagnetic interference
Built-in watch dog,
multi-link detection
Compact industrial design
Excellent temperature endurance
VPN: PPTP, L2TP, GRE, IPSec

Physical Interfaces

2 x 10/100 RJ-45 Ethernet Interfaces
1 ´ Standard SIM/R-UIM interface
1 x RP-SMA (Male) Wi-Fi Interface
1 ´ SMA (Female) Cellular interface

Applications

Payment Services
Vending machine connectivity
Retail POS
Internet based Video surveillance
Digital signage

Accessories Included

1 x Cellular Antenna
1 x Wi-Fi Antennas
1 x LAN Cable
1 x Multi Head Power Adaptor

Certifications

CE
UKCA
RoHS

QUARTZ Series Datasheet

QUARTZ LITE Hardware Manual

QUARTZ LITE EU Software Manual
