Siretta QUARTZ-LITE-21-LTE(EU) + ACCESSORIES 3G, 4G, 1 x SIM, 2 x LAN Ports

QUARTZ-LITE-W21-UMTS(EU) + ACCESSORIES

The Siretta QUARTZ series is a range of high-speed industrial 3G and 4G routers. QUARTZ routers are designed for industrial environments and housed in robust enclosures. Typical applications include remote management, condition monitoring, CCTV, ATMs, vending machine and other M2M applications.

Each model is supplied with the following accessories:
- Power Supply (PSU)
- LAN Cable
- 3G/4G Antenna
- WiFi Antenna (where applicable - W21 models)

Networks:
3G/HSPA+: 2100, 1900, 900, 800 MHz
4G/LTE: 2600, 2100, 1800, 900, 800 MHz

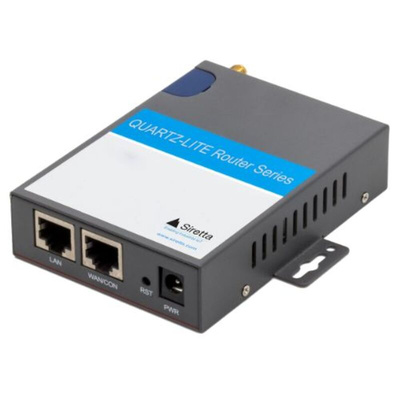

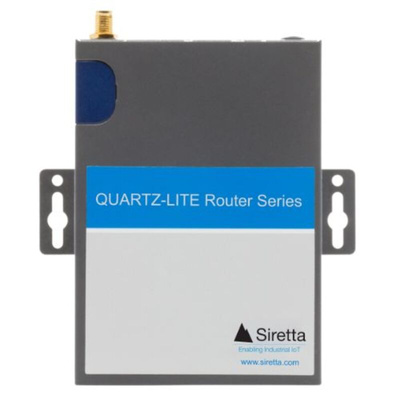

Siretta QUARTZ-LITE 4G Dual LAN Router With Accessories

The QUARTZ-LITE-LTE router is a high speed industrial router designed for transferring large amounts of data via the cellular network. The QUARTZ-LITE-LTE’s fast data transfer capability reaches up to 150Mbps download and up to 50Mbps upload speed. It also has fall-back to 3G/UMTS communication, should 4G/LTE be unavailable. It is well suited for IoT mobile broadband applications, offering reliable, secure wireless connectivity.

Features & Benefits

European 4G LTE bands
Dual LAN
High speed data via LTE network
Strong resistance to electromagnetic interference
Built-in watch dog
multi-link detection
Compact industrial design
Excellent temperature endurance
VPN: PPTP, L2TP, GRE, IPSec

Physical Interfaces

2 x 10/100 RJ-45 Ethernet Interfaces
1 ´ Standard SIM/R-UIM interface
1 ´ SMA (Female) Cellular interface

Applications

Payment Services
Vending machine connectivity
Retail POS
Internet based Video surveillance
Digital signage

Accessories Included

1 x Cellular Antenna
1 x LAN Cable
1 x Multi Head Power Adaptor

Certifications

CE
UKCA
RoHS

Quartz Series Datasheet

QUARTZ LITE Hardware Manual

QUARTZ LITE EU Software Manual
