TANGO41/2.5M/SMAM/S/S/32 Siretta - 2G (GSM/GPRS), 3G (UTMS), 4G (LTE), WiFi Multi-Band Antenna, SMA, Антенна

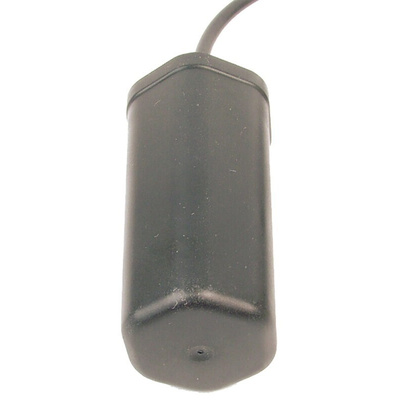

TANGO 41 - 4G/3G/2G/WiFi Bolt Through Antenna, Siretta

The TANGO 41 is a 4G/WiFi antenna which is equally capable of 3G and 2G frequencies. It can be positioned onto most surfaces including those which are not flat using it integral rubber washer.

The TANGO 41 is similar to the TANGO 40 but it can be bolted to thicker surfaces and has an integrated 2.5 metre RG58 cable with SMA male connector.

TANGO41/1M/SMAM/S/S/32 - 1 m Antenna (140-8064)
TANGO41/5M/SMAM/S/S/33 - 5 m Antenna (140-8065)
TANGO41/2.5M/SMAM/S/S/32 - 2.5 m Antenna (124-8862)

SWR: < 3
Radiation: Omnidirectional
Polarisation: Vertical

Frequency bands:
698 MHz to 960 MHz @ 1 dBi gain
1710 MHz to 2170 MHz @ 3 dBi gain
2300 MHz to 2700 MHz @ 5 dBi gain

Mechanical information:
39.8 mm diameter
77.9 mm length
16 mm diameter hole required for stud
Max thickness of material to be mounted to - approximately 12 mm
Rubber gasket provides reliable water sealing to mounted surface

Multi-band Antennas, Siretta

TANGO41 Antenna Datasheet
