Siretta TANGO40/x/NTYPEF/S/S/32 Stubby Multiband Antenna with N Type Connector, 2G (GSM/GPRS), 3G (UTMS), 4G (LTE), WiFi, Антенна

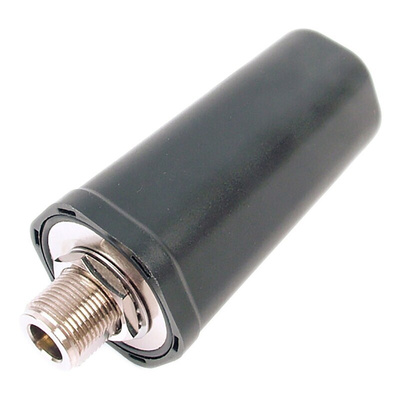

TANGO 40 - 4G/3G/2G/WiFi Bolt Through Antenna, Siretta

The TANGO 40 is a 4G/WiFi antenna which is equally capable of 3G and 2G frequencies. It can be positioned onto most surfaces including those which are not flat using it integral rubber washer.

SWR: < 3
Radiation: Omnidirectional
Polarisation: Vertical

Frequency bands:
698 MHz to 960 MHz @ 1 dBi gain
1710 MHz to 2170 MHz @ 3 dBi gain
2300 MHz to 2700 MHz @ 5 dBi gain

Mechanical information:
39.8 mm diameter
77.9 mm length
N type jack stud for mounting the antenna
16 mm diameter hole required for stud
Max thickness of material to be mounted to - approximately 5 mm
Rubber gasket provides reliable water sealing to mounted surface

Multi-band Antennas, Siretta

TANGO40 Antenna Datasheet
