Siretta ALPHA40/2.5M/SMAM/S/S/29 T-Bar Multiband Antenna with SMA Connector, 2G (GSM/GPRS), 3G (UTMS), 4G (LTE) 5G, Антенна

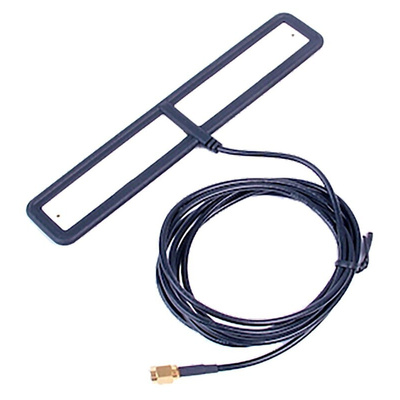

ALPHA 40 4G/3G/2G T Bar Adhesive Mount Antenna, Siretta

The ALPHA 40 4G/3G/2G cellular antenna is tuned to give maximum gain at 4G (2600 MHz) frequency. It has only slightly lower gain at 3G (2100 MHz) and 2G (1700-1900 MHz) frequencies. The ALPHA 40 can also be used for Bluetooth and WiFi applications.

The antenna has two sticky pads to mount and ensures that there is a small gap between the antenna and the mounting surface.

The ALPHA 40 is available with 3 cable lengths:

ALPHA40/1.5M/SMAM/S/S/29 - 1.5 meter cable (RS 124-8864)
ALPHA40/2.5M/SMAM/S/S/29 - 2.5 meter cable (RS 124-8865)
ALPHA40/5M/SMAM/S/S/29 - 5 meter cable (RS 124-8666)

155 x 30 x 4.5 mm 'T' bar
SMA Male Connector
PRO100 low loss cable
700 MHz to 824 MHz - 0.5 dBi gain
1710 MHz to 2170 MHz - 1 dBi gain
2300 MHz to 2700 MHz - 2 dBi gain

Mobile Communication Antenna (GSM/GPRS/2G/3G/4G), Siretta

Datasheet - ALPHA40/2.5M/SMAM/S/S/29
