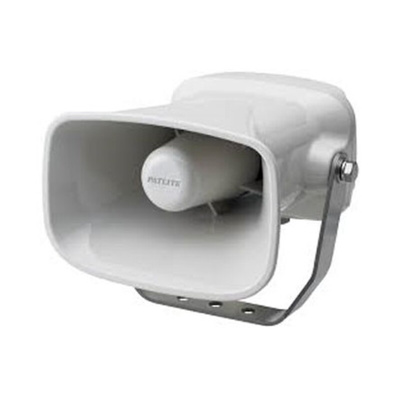

EHV-M1TG, Patlite EHV Series Wall Mount Electronic Sounder, 100 → 240 V ac, 12 → 24 V dc, 110dB at 1 m, IP65, AC,

Patlite Electronic Sounder

The Patlite Electronic sounder is a 63-tone alarm with sound output level up to 110dB at a distance of up to 1m. This sounder works on a supply voltage of 24VDC. It has a white-coloured body and is a wall mount. It can store up to 15 messages in binary input and playing time is up to 63.5 seconds.

Features and Benefits

63 binary channels with adjustable volume
MP3 function with a maximum of 220 seconds of recording time (at 64bps)
Robust, indoor and outdoor use with vibration resistance up to 4.5G
Ideal for plant-wide notification and process control

Applications

Plant wide notification
Public address
Process control

Certifications

Compliant to UL464 (EHV-M3 Not Included)
CSA-C22.2 NO.205-M1983
FCC Part 15
Subpart B Class 4
Protection Rating of IP65 and CE (EHV-M2 Not Included)
