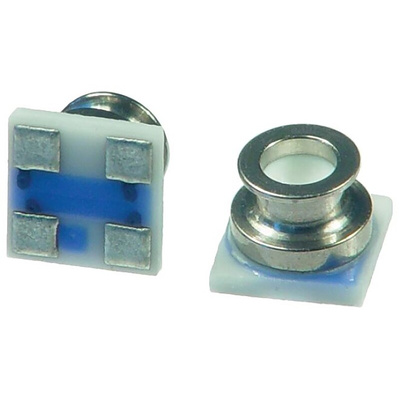

MS5837-02BA, TE Connectivity Absolute Pressure Sensor, 1200mbar Operating Max, Surface Mount, 4-Pin, 10bar Overload Max

TE Connectivity MS5837 Gel Filled Pressure Sensor

The MS5837 is an ultra-compact SMT mounting digital pressure sensor from TE Connectivity. The device is optimized for altimeter and barometer applications and uses a gel-filled design providing an altitude resolution of 13 cm. The altitude resolution at sea level is 13 cm of air. The sensor module includes a high-linearity pressure sensor and an ultra-low power 24 bit û ADC with internal factory-calibrated coefficients. It provides a precise digital 24-bit pressure and temperature value and different operation modes that allow the user to optimize for conversion speed and current consumption. A high-resolution temperature output allows the implementation of an altimeter/thermometer function without any additional sensor. The MS5837 can be interfaced to any microcontroller with I2C-bus interface. The communication protocol is simple, without the need of programming internal registers in the device.

• Pressure range: 300 to 1200 mbar
• Accuracy, -20 to 85°C: ±4 mbar
• Maximum resolution: 0.016 mbar
• High-linearity 24-bit Delta-Sigma ADC
• I2C digital interface
• Supply voltage: 1.5 to 3.6 V

Applications

• Fitness trackers
• Altimeter systems
• Barometer systems
• Bicycle computers
• Personal navigation devices
• Multi-sport watches
• Tyre pressure gauges

Pressure Sensors, TE Connectivity

Ultra-Small Gel Filled Pressure Sensor
