80891004, Crouzet Brushed Geared DC Geared Motor, 194 W, 12 → 48 V dc, 10 Nm, 3000 rpm, 10mm Shaft Diameter, Двигатель

Geared DC Motor Series 82 8900

A range of Crouzet DC motors from the 82 8900 series with a maximum output torque of 10 Nm. These geared motors are particularly suitable for use in applications such as valves, pumps, medical equipment, access barriers, turnstiles, lift doors, water treatment, billboards plus many others.

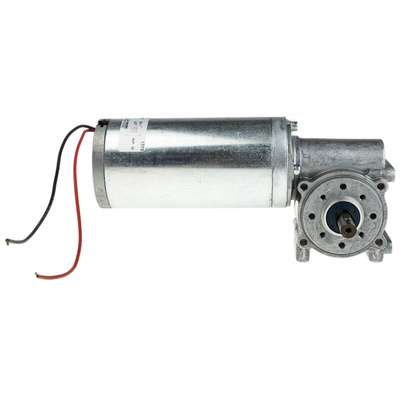

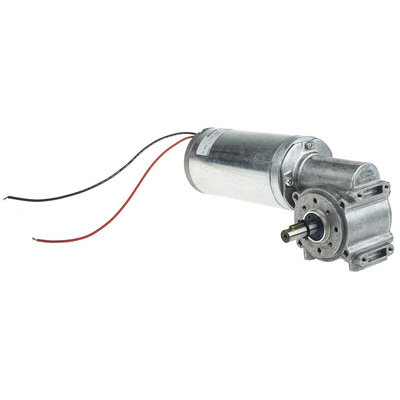

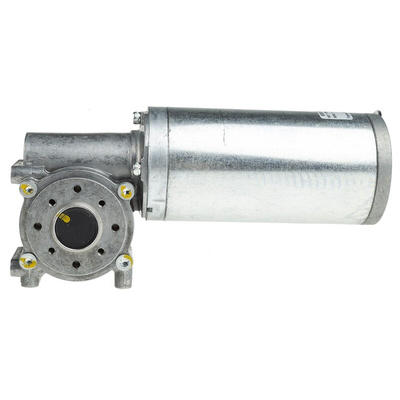

Crouzet Brushed DC Geared Motor

The Crouzet brushed DC geared motor from the 82890 series has a right angle gearhead. It has a maximum output torque of 10Nm for long service life and a power rating of 194W. This geared motor has a gear ratio of 300:1. It has an output speed of 107rpm.

Features and Benefits

• Ideal for short reduction ratios
• Non reversible movement at high ratios
• Output perpendicular to motor
• Silent-running gearbox

Applications

• Billboards
• Lift doors
• Medical equipment
• Pumps
• Valves
• Water treatment

Certifications

• CE certified
• UL approved

Datasheet
