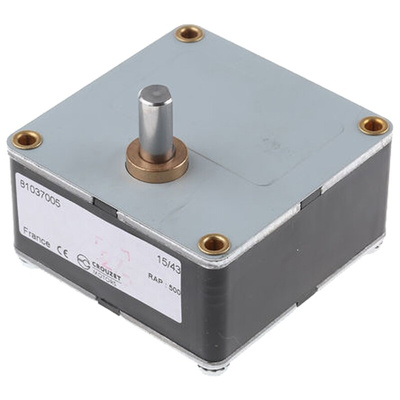

81037007, Crouzet Geared DC Geared Motor, 3 (Motor) W, 24 V, 5 Nm, 8 rpm, 8mm Shaft Diameter, Двигатель

32 & 42mm Diameter Motors & Gearboxes

Low to medium power dc. motors fitted with a square mounting flange, centring bush and drive pinion. This allows simple and quick attachment to a 65mm square gearbox. All motors have sintered bronze bearings lubricated for life
32mm diameter motors have built-in interference suppression, whilst the 42mm diameter motors have replaceable motor brushes (stock no. 320-613)
Gearboxes have metal end plates, with a plastic body between and metal gears. The user can select the appropriate combination of motor voltage, power and gearbox output speed which meets their requirements
Gearbox dimensions: height 65mm x width 65mm, shaft diameter 8mm

Note

For applications where stall conditions may occur, it is recommended that a current limiter is fitted to this combination.

Crouzet Industrial DC Brush motors offer low operating speeds (2000 to 4000 rpm) and exceptionally long service life (over 20000 hours), outstanding protection, etc. These products are particularly suitable for use in medical equipment, valves, pumps, access control (barrier, turnstile, lift doors, etc), water treatment, billboards, etc. Crouzet recently launched DC mind Brush Motors, a new range of high-performance direct current brush motors. Exceptional efficiency and working life, conformity to the strictest standards, and wide range of available power supplies are just some of the reasons why DCmind Brush Motors are ideal for use in medical equipments, pumps and valves, railways, and aeronautics.
