ISL68134-31P-EV1Z, Renesas Electronics Multiphase Controller for ISL68134 for Digital Multiphase Device

ISL68134, 3+1 Phase Digital Multiphase Controller Evaluation Board, Intersil

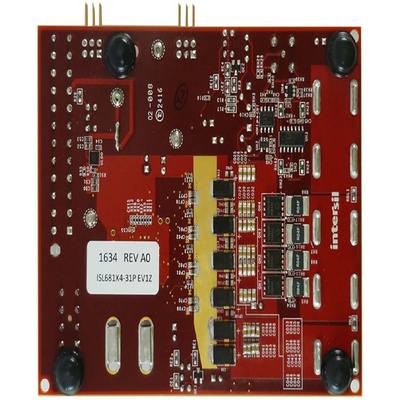

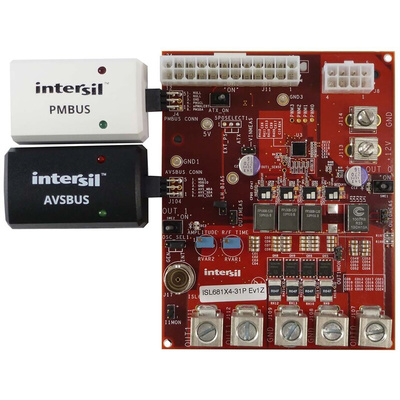

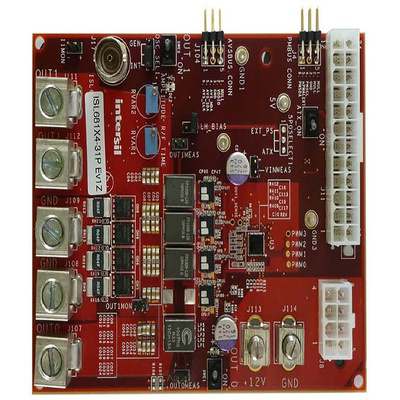

The ISL68134-31P-EV1Z board evaluates the ISL68134 Digital Dual Output, 4-Phase Configurable, PWM Controller with Adaptive Voltage Scaling (AVSBus) Bus.
The ISL68134 Digital Multiphase Controller is combined with the ISL99227 Smart Power Stage (SPS) to provide a balanced and highly efficient power.

Output from 0.6 V to 1.8 V
3+1 phase operation delivers up to 135A + 30A
Input from 5 V to 16 V
0.5% VOUT regulation accuracy
PMBus interface, AVSBus interface
3% IOUT telemetry accuracy
Transient load generator on-board to facilitate high di/dt loads testing
ATX or bench supply connections for input sources

PWM (Pulse Width Modulation) Controllers, Intersil

ISL68134-31P-EV1Z Evaluation Board Quick Start User Guide

ISL68134, Digital Dual Output, 4-Phase Configurable, PWM Controller with Adaptive Voltage Scaling (AVSBus) Bus
