SRP-147 24VDC, Simex SRP-147 LED Process Meter for 0→10 V, 67mm x 137mm, Многофункциональный измеритель

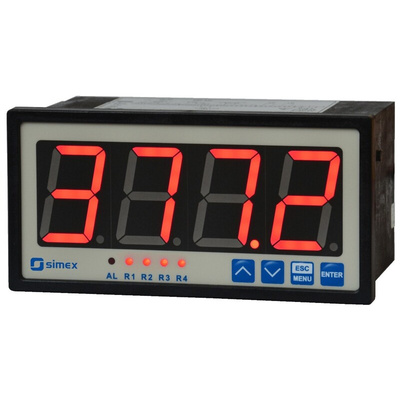

SRP-147 Process Meter

The SRP-147 process meter is designed for measuring typical current or voltage signals. One of the main features of this meter is the large 38 mm high LED display. The output on this meter is designed to supply measuring transducers and the RS485 port enables data transmission in production process monitoring systems.

• Large 4-digit (38 mm) LED display
• Analogue output- active or passive
• 0/4-20 mA, 0/1-5 V, 0/2-10 V, 0-60/75/100/150 mV inputs
• Wide range of characteristic curves- linear, square root, quadratic, user-defined and volume characteristic for cylindrical tanks
• RS485/Modbus RTU communication port
• Configuration with local keyboard or free S-Config software via RS485 port
• Signal peak value detection
• Free configuration software S-Config

Simex Multi function Meters

Datasheet
