F3SG-2RE0160P14, Omron F3SG-RE Series Light Curtain, Sender & Receiver, 15 Beam(s), 14mm Resolution, Световые завесы

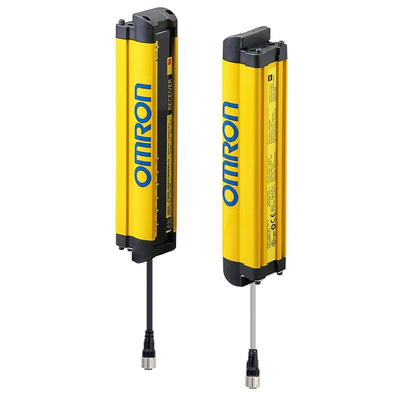

Omron Light Curtain

The Omron F3SG-RE series light curtain is a finger protection safety sensor. This is a sender and receiver component type with 15 beams and 14mm resolution. The easy-to-use safety light curtain is ideal for simple ON/OFF detection applications. The curtain is available in Type 2 (PL c) with self-test function. It is simple to mount, operate and maintain.

Online troubleshooting in 8 languages:
Troubleshooting support for safety light curtain errors in your local language is available. Simply apply a QR code sticker to the machine and scan with your tablet or smartphone. Also, it is accessible by a computer. Operators can check the error details in 8 languages and download manuals from a dedicated website. Languages include English, Spanish, French, Chinese, Korean, Japanese, German and Italian.

Features and Benefits

Protective height of 160mm

Torsion-resistant for fast and simple alignment
Smart-click 1/8 turn quick-connect M12 cable connection for fast setup and correct torque
Sensing distance ranges from 0.3m to 10m
QR code indication for easy online troubleshooting
Provides simple safety functions - saving TCO by reducing errors
Simple wiring with only 4 wires
Fast response time of 5ms
Cable terminal type with 4-Pin M12 Connector

Certifications

IP67 rated
EN ISO 13849-1:2008
TUV approved
UL approved
CE certified

Datasheet

Brochure

Declaration of Conformity

TUV Certificate

Installation Manual

User Manual
