F3SG-2RE0510P30, Omron F3SG-RE Series Light Curtain, Sender & Receiver, 24 Beam(s), 30mm Resolution, Световые завесы

Omron Light Curtain

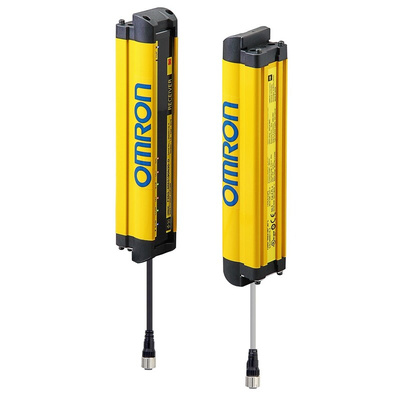

The Omron F3SG-RE series light curtain is a hand protection safety sensor. This is a sender and receiver component type with 24 beams and 30mm resolution. The easy-to-use safety light curtain is ideal for simple ON/OFF detection applications. The curtain is available in Type 2 (PL c) with self-test function. It is simple to mount, operate and maintain.

Online troubleshooting in 8 languages:
Troubleshooting support for safety light curtain errors in your local language is available. Simply apply a QR code sticker to the machine and scan with your tablet or smartphone. Also, it is accessible by a computer. Operators can check the error details in 8 languages and download manuals from a dedicated website. Languages include English, Spanish, French, Chinese, Korean, Japanese, German and Italian.

Features and Benefits

Protective height of 510mm

Torsion-resistant for fast and simple alignment
Smart-click 1/8 turn quick-connect M12 cable connection for fast setup and correct torque
Sensing distance ranges from 0.3m to 20m
QR code indication for easy online troubleshooting
Provides simple safety functions - saving TCO by reducing errors
Simple wiring with only 4 wires
Fast response time of 5ms
Cable terminal type with 5-Pin M12 Connector (Emitter) and 8-Pin M12 Connector (Receiver)

Certifications

IP67 rated
EN ISO 13849-1:2008
TUV approved
UL approved
CE certified
