RGC1P23V30ED, Carlo Gavazzi Power Control, Analog Input Input, 30 A, Регулятор мощности

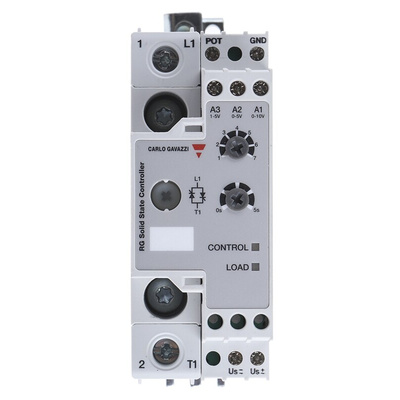

Carlo Gavazzi SSR Power Controller

The Carlo Gavazzi RGC1P series SSR power controller has a solid-state contactor supplied with the integrated heatsink. It required analogue input and a current rating of 30A. It is used to control the output power of single-phase loads with an analogue control input. It has selectable switching modes regulated with a knob on the front of the controller. This also allows phase angle control, full-cycle control, advanced full-cycle control, and soft starting. The output of the power controllers is protected against overvoltages by an integrated varistor across the output.

Features and Benefits

100kA short circuit current rating
1-pole analogue switching AC solid-state contactors
2 front LEDs indicate the status of load and control
Control inputs: 4-20 mA, 0V-5V, 1V-5V, 0V-10V, external potentiometer
DIN-rail or panel mounting
Integrated heatsink
Integrated varistor protection on output
Rated operation current up to 63AAC
Rated operational voltage up to 660VAC
Selectable modes of operation are Phase angle, full-cycle x1, x4 or x16, advanced full-cycle specific for short wave infrared heaters and soft starting for limiting inrush current of loads having a high-temperature coefficient

Certifications

CE certified
cULus approved
