NSP4671, Schill 4m Cable Reel, 230 V, IP20

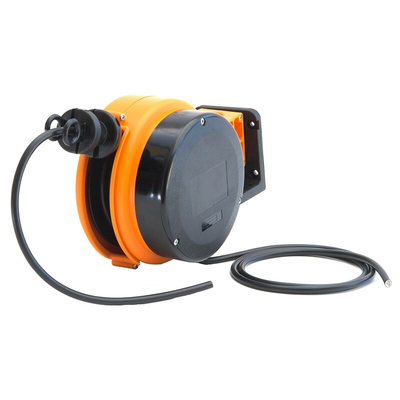

FT150 Spring Return Cable Reel

Small, lightweight reel suitable for small workshops, garages etc.

Entry level retractable reel capable of bringing power to any application in a safe efficient manner. It is a sturdy all thermoplastic design made from high quality materials, electrically insulated and corrosion resistant.

Depending on requirements, the desired length of cable is unwound; the remaining cable is neatly stored on the reel - safe from dirt and damage. When the cable connection is no longer required, a short pull on the stopper and the cable neatly rewinds. A spring return cable reel means a safe and organised workplace.

Adjustable ball stop
Ratchet on/off facility
Fused terminal block
0.8mOhn contact resistance
Universal mounting bracket
IP20 protection
High quality brass slip ring with silver contacts
Maximum load wound = 4A; unwound = 10A
Weight: 1.3 kg

Supplied with

4 metres of oil resistant H05VV-F3 1.00 mm² cable capable of operating temperatures of +5°C to +60°C

Marcaddy Cable Reels

Datasheet NSP4671
