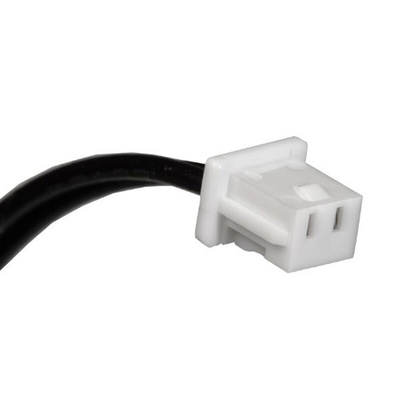

15134-0202, Molex 2 Way Female PicoBlade to 2 Way Female PicoBlade Wire to Board Cable, 150mm

Molex PicoBlade Standard Receptacle Cable Assemblies - 15134 Series

PicoBlade wire-to-board cable assemblies in a range of cable lengths terminated either end with a PicoBlade receptacle connector. These PicoBlade connector cable assemblies are constructed using UL1061 discrete wires to help make design, prototyping and production easier. The pin to pin single map configuration allows each signal to be assigned to a pin without having to design the cable layout. The PicoBlade receptacles have a single row, compact space saving design with a small 1.25 mm pitch. A friction lock on the connector ensures that the cable assembly is securely attached to the mating header preventing accidental unmating due to vibration or mishandling. These PicoBlade cable assemblies are designed for use with Series 53261, 53047, 53398 and 53048 PicoBlade wire to board PCB headers

Features and Benefits

• Constructed using UL1061 discrete wires for ease of design
• Pin to pin map configurations reduce the need for cable layout design
• Compact space saving connector design with a small 1.25 mm pitch
• Friction locks on connector housings for secure mating connection to header
• Available in a Range of cable lengths

Constructed using UL1061 discrete wires for ease of design
Pin to pin map configurations reduce the need for cable layout design
Compact space saving connector design with a small 1.25 mm pitch
Friction locks on connector housings for secure mating connection to header
Available in a Range of cable lengths

Applications

These PicoBlade wire-to-board cable assemblies are ideal for use in Prototype design and global application. Applications include home entertainment, home appliances and mobile devices, commercial vehicles, industrial process controls and medical.

Molex Wire-to-Board Cable Assembly, 125V Voltage Rating, 150mm Length - PicoBlade Series - 15134-0202

Make a fast connection between a cable and a printed circuit board (PCB) with this wire-to-board cable assembly from Molex. It features a PicoBlade receptacle connector on either end with a pin-to-pin single map configuration. This means you can quickly assign each signal to a pin without having to design the cable layout. A friction lock on the connectors ensures a secure attachment to a mating header. This helps to stop accidental disconnection caused by vibration or mishandling. You'll find a cable assembly like this one commonly used in prototype design.

• Compact connector design with a space-saving pitch of 1.25mm
• Wide operating temperature range of -40°C to +85°C ensures it's suitable for demanding environments
• Tin-plated contact receptacles for the reliable flow of electrical current

Applications

• Home entertainment systems
• Mobile devices
• Commercial vehicles
• Industrial process control

How long is the cable on this unit?

This assembly is 150mm long, so it offers flexibility without the clutter of unnecessary cable.

Can I use this cable assembly to make a permanent connection?

Yes, this unit is a suitable choice for both permanent and temporary connections.

1.25mm Wire to Board - Molex PicoBlade™

PicoBlade™ Standard Cable Assemblies

PicoBlade Wire to Board Cable Assembly, 2P - Drawing
