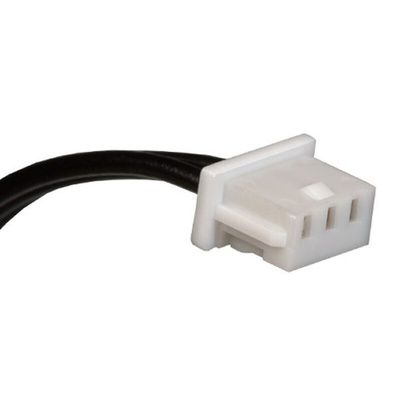

15134-0302, Molex 3 Way Female PicoBlade to 3 Way Female PicoBlade Wire to Board Cable, 150mm

Molex PicoBlade Standard Receptacle Cable Assemblies - 15134 Series

PicoBlade wire-to-board cable assemblies in a range of cable lengths terminated either end with a PicoBlade receptacle connector. These PicoBlade connector cable assemblies are constructed using UL1061 discrete wires to help make design, prototyping and production easier. The pin to pin single map configuration allows each signal to be assigned to a pin without having to design the cable layout. The PicoBlade receptacles have a single row, compact space saving design with a small 1.25 mm pitch. A friction lock on the connector ensures that the cable assembly is securely attached to the mating header preventing accidental unmating due to vibration or mishandling. These PicoBlade cable assemblies are designed for use with Series 53261, 53047, 53398 and 53048 PicoBlade wire to board PCB headers

Features and Benefits

• Constructed using UL1061 discrete wires for ease of design
• Pin to pin map configurations reduce the need for cable layout design
• Compact space saving connector design with a small 1.25 mm pitch
• Friction locks on connector housings for secure mating connection to header
• Available in a Range of cable lengths

Constructed using UL1061 discrete wires for ease of design
Pin to pin map configurations reduce the need for cable layout design
Compact space saving connector design with a small 1.25 mm pitch
Friction locks on connector housings for secure mating connection to header
Available in a Range of cable lengths

Applications

These PicoBlade wire-to-board cable assemblies are ideal for use in Prototype design and global application. Applications include home entertainment, home appliances and mobile devices, commercial vehicles, industrial process controls and medical.

Molex PicoBlade Series Wire to Board Cable, 150mm Cable Length, 1A - 15134-0302

This wire to board cable with picoBlade connector and a pitch of 1.25mm is an essential component for various industries like automation, electronics, electrical, and mechanical. It is designed to provide reliable connectivity for high current applications. The black sheath cable ensures durability and safety, while the voltage rating of 125V makes it suitable for a wide range of uses.

Features & Benefits

• Tin plated cable for efficient conductivity
• PicoBlade series cable for seamless integration with compatible connectors
• High current capability of 1.0A for demanding applications
• Black sheath cable for added protection and aesthetics
• 1.25mm pitch cable for precise connections
• Voltage rating of 125V for versatile usage

Applications

• Ideal for automation systems requiring reliable connections
• Essential for electronics applications that demand high current capacity
• Perfect for electrical setups where precise connections are crucial
• Suitable for mechanical systems that need durable and efficient cables

Can it handle high current applications?

Yes, the wire to board cable with PicoBlade connector and 1.25mm pitch is designed to support high current applications with a capacity of 1.0A.

Will it provide secure connections in automation systems?

The cable ensures reliable connectivity for automation systems where stable connections are essential for uninterrupted operation.

Is it suitable for electronics applications?

Yes, the cable is perfect for electronics applications requiring precise connections and efficient performance.

Can it withstand mechanical stress?

The black sheath cable provides durability, making it suitable for mechanical systems that require robust components.

Is it easy to integrate with compatible connectors?

With the PicoBlade series cable design, seamless integration with compatible connectors is ensured for ease of use.

1.25mm Wire to Board - Molex PicoBlade™

PicoBlade™ Standard Cable Assemblies

PicoBlade Wire to Board Cable Assembly, 3P - Drawing
