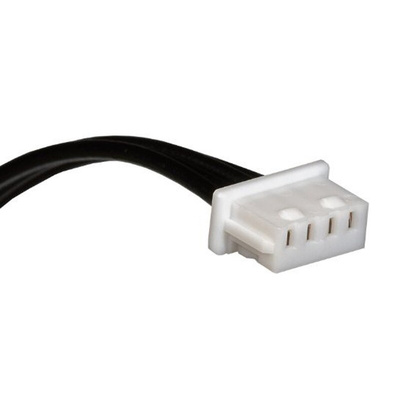

15134-0400, Molex 4 Way Female PicoBlade to 4 Way Female PicoBlade Wire to Board Cable, 50mm

Molex PicoBlade Standard Receptacle Cable Assemblies - 15134 Series

PicoBlade wire-to-board cable assemblies in a range of cable lengths terminated either end with a PicoBlade receptacle connector. These PicoBlade connector cable assemblies are constructed using UL1061 discrete wires to help make design, prototyping and production easier. The pin to pin single map configuration allows each signal to be assigned to a pin without having to design the cable layout. The PicoBlade receptacles have a single row, compact space saving design with a small 1.25 mm pitch. A friction lock on the connector ensures that the cable assembly is securely attached to the mating header preventing accidental unmating due to vibration or mishandling. These PicoBlade cable assemblies are designed for use with Series 53261, 53047, 53398 and 53048 PicoBlade wire to board PCB headers

Features and Benefits

• Constructed using UL1061 discrete wires for ease of design
• Pin to pin map configurations reduce the need for cable layout design
• Compact space saving connector design with a small 1.25 mm pitch
• Friction locks on connector housings for secure mating connection to header
• Available in a Range of cable lengths

Constructed using UL1061 discrete wires for ease of design
Pin to pin map configurations reduce the need for cable layout design
Compact space saving connector design with a small 1.25 mm pitch
Friction locks on connector housings for secure mating connection to header
Available in a Range of cable lengths

Applications

These PicoBlade wire-to-board cable assemblies are ideal for use in Prototype design and global application. Applications include home entertainment, home appliances and mobile devices, commercial vehicles, industrial process controls and medical.

Molex Wire-to-Board Cable Assembly, 50mm Length, 125V - PicoBlade Series - 15134-0400

Use this high-performance cable assembly from Molex to connect your components to PCBs (printed circuit boards). This device has contacts made of phosphor-bronze material, which is highly conductive and offers a reliable connection. These contacts are plated with tin for extra corrosion resistance that'll prevent decay due to rust. Pin-to-pin map configuration allows you to assign a signal to a single connector, so you don't have to design the cable layout. The assembly's compact pitch of 1.25mm makes it a good choice for applications where space is limited.

Features & Benefits

• Point-to-point single row configuration to support development and production programs
• Thermoplastic material connector housing for insulation from electric shock
• Friction locks on connector housings for secure mating connection to the header, even in vibrating systems
• Wide operating temperature range of -40°C to +85°C for safe use in harsh environments

Applications

• Industrial process-control systems
• Gaming consoles
• Home appliances

What's the advantage of using a cable assembly?

As this cable assembly comes as a bundle, the number of cables in the circuit are reduced, helping you achieve a more organised setup.

1.25mm Wire to Board - Molex PicoBlade™

PicoBlade™ Standard Cable Assemblies

PicoBlade Wire to Board Cable Assembly, 4P - Drawing
