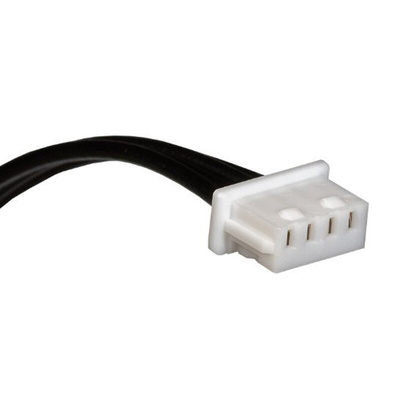

15134-0401, Molex 4 Way Female PicoBlade to 4 Way Female PicoBlade Wire to Board Cable, 100mm

Molex PicoBlade Standard Receptacle Cable Assemblies - 15134 Series

PicoBlade wire-to-board cable assemblies in a range of cable lengths terminated either end with a PicoBlade receptacle connector. These PicoBlade connector cable assemblies are constructed using UL1061 discrete wires to help make design, prototyping and production easier. The pin to pin single map configuration allows each signal to be assigned to a pin without having to design the cable layout. The PicoBlade receptacles have a single row, compact space saving design with a small 1.25 mm pitch. A friction lock on the connector ensures that the cable assembly is securely attached to the mating header preventing accidental unmating due to vibration or mishandling. These PicoBlade cable assemblies are designed for use with Series 53261, 53047, 53398 and 53048 PicoBlade wire to board PCB headers

Features and Benefits

• Constructed using UL1061 discrete wires for ease of design
• Pin to pin map configurations reduce the need for cable layout design
• Compact space saving connector design with a small 1.25 mm pitch
• Friction locks on connector housings for secure mating connection to header
• Available in a Range of cable lengths

Constructed using UL1061 discrete wires for ease of design
Pin to pin map configurations reduce the need for cable layout design
Compact space saving connector design with a small 1.25 mm pitch
Friction locks on connector housings for secure mating connection to header
Available in a Range of cable lengths

Applications

These PicoBlade wire-to-board cable assemblies are ideal for use in Prototype design and global application. Applications include home entertainment, home appliances and mobile devices, commercial vehicles, industrial process controls and medical.

Molex Number Wire-to-Board Cable Assembly, 100mm Length, 125V - PicoBlade Series - 15134-0401

Make reliable wire-to-board connections on your circuit boards with this high-performance cable assembly from Molex. It features two single-row four-way connectors on both ends of a 100mm cable. These connectors are made of a thermoplastic material that has excellent impact-resistance properties, so they won't scratch or damage easily. The assembly is made up of a bundle of discrete wires, which eliminates the need to connect individual wires to their respective systems and saves you time on installation. You'll find this versatile component used across both industrial and domestic applications.

Features & Benefits

• Small pitch of 1.25mm for effective space management in tight enclosures
• Phosphor-bronze contacts for a reliable connection
• Tin contact plating to prevent decay from rust
• Cable length of 100mm for easy access to PCB (printed circuit board) headers
• Voltage rating of 125V for low-voltage applications

Applications

• Patient monitors in hospitals
• Mobile phones
• Prototype design

What's the difference between a cable assembly and a wire harness?

A wire harness is a single cable covered by an exterior sleeve, while a cable assembly is a group of wires shielded by an external sleeve.
