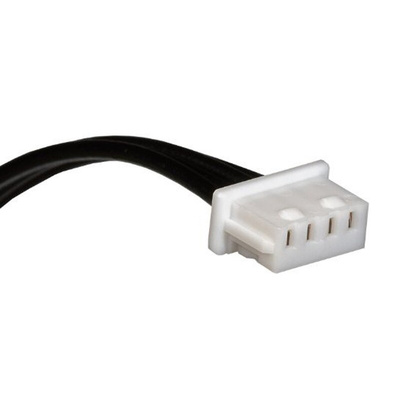

15134-0402, Molex 4 Way Female PicoBlade to 4 Way Female PicoBlade Wire to Board Cable, 150mm

Molex PicoBlade Standard Receptacle Cable Assemblies - 15134 Series

PicoBlade wire-to-board cable assemblies in a range of cable lengths terminated either end with a PicoBlade receptacle connector. These PicoBlade connector cable assemblies are constructed using UL1061 discrete wires to help make design, prototyping and production easier. The pin to pin single map configuration allows each signal to be assigned to a pin without having to design the cable layout. The PicoBlade receptacles have a single row, compact space saving design with a small 1.25 mm pitch. A friction lock on the connector ensures that the cable assembly is securely attached to the mating header preventing accidental unmating due to vibration or mishandling. These PicoBlade cable assemblies are designed for use with Series 53261, 53047, 53398 and 53048 PicoBlade wire to board PCB headers

Features and Benefits

• Constructed using UL1061 discrete wires for ease of design
• Pin to pin map configurations reduce the need for cable layout design
• Compact space saving connector design with a small 1.25 mm pitch
• Friction locks on connector housings for secure mating connection to header
• Available in a Range of cable lengths

Constructed using UL1061 discrete wires for ease of design
Pin to pin map configurations reduce the need for cable layout design
Compact space saving connector design with a small 1.25 mm pitch
Friction locks on connector housings for secure mating connection to header
Available in a Range of cable lengths

Applications

These PicoBlade wire-to-board cable assemblies are ideal for use in Prototype design and global application. Applications include home entertainment, home appliances and mobile devices, commercial vehicles, industrial process controls and medical.

Molex Wire-to-Board Cable Assembly, 150mm Length, 125V - PicoBlade Series - 15134-0402

Make secure wire-to-board connections to your PCBs (printed circuit boards) with this cable assembly from Molex. This component has a male and female connector on the two ends of a 150mm cable. The connectors are housed in a durable thermoplastic material that provides impact resistance, so you can use it even in harsh conditions. A current rating of 1A and a voltage rating of 125V make this assembly suitable for most low-voltage applications. Its compact size and 1.25mm contact pitch comes in useful for applications where space is limited.

Features & Benefits

• Pin-to-pin map technology for a simple signal allocation
• Discrete wire framework for ease of design and prototyping
• Tin contact plating for corrosion resistance and longer lifespan
• Vibration-proof friction lock to keep a secure grip on PCB headers
• Flexible cable construction for easy manipulation in hard-to-reach areas

Applications

• Medical equipment
• Gaming consoles
• Home entertainment systems

What's the main benefit of using a cable assembly?

A cable assembly like this one helps you keep your setup organised because rather than being separate, the wires come as a bound bundle.
