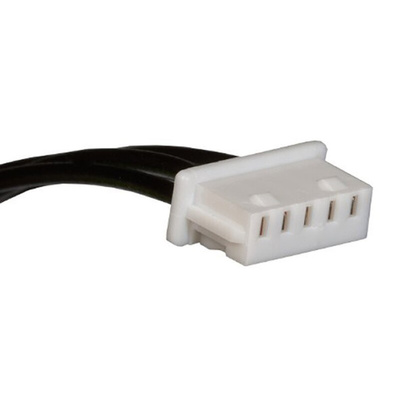

15134-0500, Molex 5 Way Female PicoBlade to 5 Way Female PicoBlade Wire to Board Cable, 50mm

Molex PicoBlade Standard Receptacle Cable Assemblies - 15134 Series

PicoBlade wire-to-board cable assemblies in a range of cable lengths terminated either end with a PicoBlade receptacle connector. These PicoBlade connector cable assemblies are constructed using UL1061 discrete wires to help make design, prototyping and production easier. The pin to pin single map configuration allows each signal to be assigned to a pin without having to design the cable layout. The PicoBlade receptacles have a single row, compact space saving design with a small 1.25 mm pitch. A friction lock on the connector ensures that the cable assembly is securely attached to the mating header preventing accidental unmating due to vibration or mishandling. These PicoBlade cable assemblies are designed for use with Series 53261, 53047, 53398 and 53048 PicoBlade wire to board PCB headers

Features and Benefits

• Constructed using UL1061 discrete wires for ease of design
• Pin to pin map configurations reduce the need for cable layout design
• Compact space saving connector design with a small 1.25 mm pitch
• Friction locks on connector housings for secure mating connection to header
• Available in a Range of cable lengths

Constructed using UL1061 discrete wires for ease of design
Pin to pin map configurations reduce the need for cable layout design
Compact space saving connector design with a small 1.25 mm pitch
Friction locks on connector housings for secure mating connection to header
Available in a Range of cable lengths

Applications

These PicoBlade wire-to-board cable assemblies are ideal for use in Prototype design and global application. Applications include home entertainment, home appliances and mobile devices, commercial vehicles, industrial process controls and medical.

Molex Wire-to-Board Cable, 1.25mm Pitch, 1A Current Rating - 15134 Series - 15134-0500

Get signals reliably on the move from A to B with this wire-to-board cable from Molex. Its pin-to-pin mapping means current doesn't get lost and efficiently passes through the five contacts at each end. Easy connectivity is in reach – simply assign signals to each pin and let the 50mm-long cable bridge the gap between your components.

Features & Benefits

• 125V voltage rating means it's ideal for low-power applications
• Inbuilt friction lock ensures secure mating, even in high-vibration settings
• Tin-plated contacts resist corrosion for a long service life
• Natural-colour polyester connector housing makes it easy to spot electrical faults

Applications

• Process control
• Medical equipment
• Industrial automation

Is this assembly reliable in harsh conditions?

Yes. This wire-to-board cable does its job without a hitch in a temperature range between -40°C and +85°C, so it withstands harsh conditions.

1.25mm Wire to Board - Molex PicoBlade™

PicoBlade™ Standard Cable Assemblies

PicoBlade Wire to Board Cable Assembly, 5P - Drawing

Datasheet - 15134-0500
