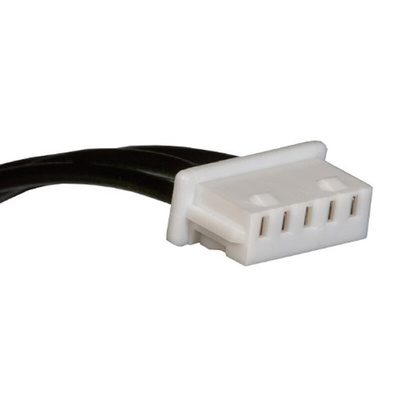

15134-0501, Molex 5 Way Female PicoBlade to 5 Way Female PicoBlade Wire to Board Cable, 100mm

Molex PicoBlade Standard Receptacle Cable Assemblies - 15134 Series

PicoBlade wire-to-board cable assemblies in a range of cable lengths terminated either end with a PicoBlade receptacle connector. These PicoBlade connector cable assemblies are constructed using UL1061 discrete wires to help make design, prototyping and production easier. The pin to pin single map configuration allows each signal to be assigned to a pin without having to design the cable layout. The PicoBlade receptacles have a single row, compact space saving design with a small 1.25 mm pitch. A friction lock on the connector ensures that the cable assembly is securely attached to the mating header preventing accidental unmating due to vibration or mishandling. These PicoBlade cable assemblies are designed for use with Series 53261, 53047, 53398 and 53048 PicoBlade wire to board PCB headers

Features and Benefits

• Constructed using UL1061 discrete wires for ease of design
• Pin to pin map configurations reduce the need for cable layout design
• Compact space saving connector design with a small 1.25 mm pitch
• Friction locks on connector housings for secure mating connection to header
• Available in a Range of cable lengths

Constructed using UL1061 discrete wires for ease of design
Pin to pin map configurations reduce the need for cable layout design
Compact space saving connector design with a small 1.25 mm pitch
Friction locks on connector housings for secure mating connection to header
Available in a Range of cable lengths

Applications

These PicoBlade wire-to-board cable assemblies are ideal for use in Prototype design and global application. Applications include home entertainment, home appliances and mobile devices, commercial vehicles, industrial process controls and medical.

Molex Wire-to-Board Cable Assembly, 100mm Length, 125V - PicoBlade Series - 15134-0501

Use this high-performance cable assembly from Molex's PicoBlade range for wire-to-board connections on your PCBs (printed circuit boards). It has two connectors that can each accommodate five wires for multi-signal transmission on a single channel. The cables on this component are covered in a polyester sheath, which offers excellent insulation properties, so you'll be safe from electric shock while using it. This assembly can also be used for wire-to-wire connections where necessary and is compatible with a range of PicoBlade PCB headers. It's ideal for all of your prototype design and production applications.

Features & Benefits

• Phosphor-bronze contact material for a reliable connection
• Space-saving connector design with 1.25mm pitch to fit into compact circuit designs
• Friction lock to prevent accidental unmating from PCB headers
• Tin contact to prevent rust and deliver long-term performance
• Operating temperature range of -40°C to +85°C for reliable performance in demanding conditions

Applications

• Gaming consoles
• Medical equipment
• Mobile devices

Is this cable assembly waterproof?

No, this cable assembly isn't waterproof so shouldn't be used in damp or humid conditions.

1.25mm Wire to Board - Molex PicoBlade™

PicoBlade™ Standard Cable Assemblies

PicoBlade Wire to Board Cable Assembly, 5P - Drawing
