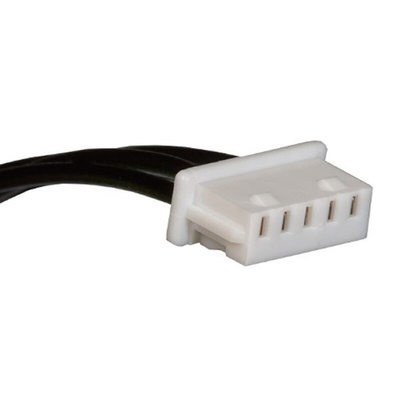

15134-0503, Molex 5 Way Female PicoBlade to 5 Way Female PicoBlade Wire to Board Cable, 300mm

Molex PicoBlade Standard Receptacle Cable Assemblies - 15134 Series

PicoBlade wire-to-board cable assemblies in a range of cable lengths terminated either end with a PicoBlade receptacle connector. These PicoBlade connector cable assemblies are constructed using UL1061 discrete wires to help make design, prototyping and production easier. The pin to pin single map configuration allows each signal to be assigned to a pin without having to design the cable layout. The PicoBlade receptacles have a single row, compact space saving design with a small 1.25 mm pitch. A friction lock on the connector ensures that the cable assembly is securely attached to the mating header preventing accidental unmating due to vibration or mishandling. These PicoBlade cable assemblies are designed for use with Series 53261, 53047, 53398 and 53048 PicoBlade wire to board PCB headers

Features and Benefits

• Constructed using UL1061 discrete wires for ease of design
• Pin to pin map configurations reduce the need for cable layout design
• Compact space saving connector design with a small 1.25 mm pitch
• Friction locks on connector housings for secure mating connection to header
• Available in a Range of cable lengths

Constructed using UL1061 discrete wires for ease of design
Pin to pin map configurations reduce the need for cable layout design
Compact space saving connector design with a small 1.25 mm pitch
Friction locks on connector housings for secure mating connection to header
Available in a Range of cable lengths

Applications

These PicoBlade wire-to-board cable assemblies are ideal for use in Prototype design and global application. Applications include home entertainment, home appliances and mobile devices, commercial vehicles, industrial process controls and medical.

Molex Wire-To-Board Cable Assembly, 300mm Cable Length, 125V Voltage Rating - PicoBlade Series - 15134-0503

Safely link wires to your PCB with this wire-to-board cable assembly from Molex. Its tin-plated contacts resist corrosion and impact, so you can rely on them for long-term performance. As there are five contacts, you can make multiple connections from one unit, for efficiency in your equipment. Thanks to a PicoBlade connector pitch size of 1.25mm and friction lock, you can be sure of a space-efficient and vibration-proof connection for your applications.

• 125V voltage rating for use with low-voltage applications
• Pin-to-pin map configuration for easy assembly and connection
• Current rating of 1A so its energy-efficient

Applications

• Medical equipment
• Gaming consoles
• Mobile phones

What's the rated contact resistance of this cable assembly?

This cable assembly has a contact resistance of 20mΩ, so it can deliver a stable data signal without static interference.
