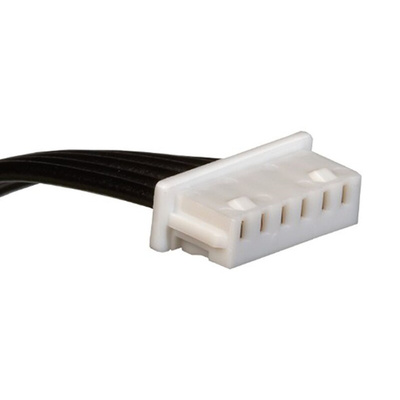

15134-0601, Molex 6 Way Female PicoBlade to 6 Way Female PicoBlade Wire to Board Cable, 100mm

Molex PicoBlade Standard Receptacle Cable Assemblies - 15134 Series

PicoBlade wire-to-board cable assemblies in a range of cable lengths terminated either end with a PicoBlade receptacle connector. These PicoBlade connector cable assemblies are constructed using UL1061 discrete wires to help make design, prototyping and production easier. The pin to pin single map configuration allows each signal to be assigned to a pin without having to design the cable layout. The PicoBlade receptacles have a single row, compact space saving design with a small 1.25 mm pitch. A friction lock on the connector ensures that the cable assembly is securely attached to the mating header preventing accidental unmating due to vibration or mishandling. These PicoBlade cable assemblies are designed for use with Series 53261, 53047, 53398 and 53048 PicoBlade wire to board PCB headers

Features and Benefits

• Constructed using UL1061 discrete wires for ease of design
• Pin to pin map configurations reduce the need for cable layout design
• Compact space saving connector design with a small 1.25 mm pitch
• Friction locks on connector housings for secure mating connection to header
• Available in a Range of cable lengths

Constructed using UL1061 discrete wires for ease of design
Pin to pin map configurations reduce the need for cable layout design
Compact space saving connector design with a small 1.25 mm pitch
Friction locks on connector housings for secure mating connection to header
Available in a Range of cable lengths

Applications

These PicoBlade wire-to-board cable assemblies are ideal for use in Prototype design and global application. Applications include home entertainment, home appliances and mobile devices, commercial vehicles, industrial process controls and medical.

Molex Wire-to-Board Cable, 100mm Length, 125V Voltage Rating - PicoBlade Series - 15134-0601

Looking for a device that securely attaches wires to your PCB? Choose this wire-to-board cable from Molex. It has two female connectors for ease of attachment to a male device on your board. At each end, there's a PicoBlade terminal with a built-in friction lock to ensure a secure connection, even in the event of heavy vibrations. The cable has a current rating of 1A for use in low-powered systems.

• Compact pitch of 1.25mm to maximise packing efficiency
• Tin-plated contacts provide high conductivity and corrosion resistance for a reliable connection
• Small length of 100mm to minimise excess cabling for a neat setup

Applications

• Mobile devices
• Domestic appliances

Can this cable withstand use in harsh environments?

Yes. The cable has a wide operating temperature range between -40°C and +85°C, so it's suitable for use in demanding industrial settings.
