15134-0602, Molex 6 Way Female PicoBlade to 6 Way Female PicoBlade Wire to Board Cable, 150mm

Molex PicoBlade Standard Receptacle Cable Assemblies - 15134 Series

PicoBlade wire-to-board cable assemblies in a range of cable lengths terminated either end with a PicoBlade receptacle connector. These PicoBlade connector cable assemblies are constructed using UL1061 discrete wires to help make design, prototyping and production easier. The pin to pin single map configuration allows each signal to be assigned to a pin without having to design the cable layout. The PicoBlade receptacles have a single row, compact space saving design with a small 1.25 mm pitch. A friction lock on the connector ensures that the cable assembly is securely attached to the mating header preventing accidental unmating due to vibration or mishandling. These PicoBlade cable assemblies are designed for use with Series 53261, 53047, 53398 and 53048 PicoBlade wire to board PCB headers

Features and Benefits

• Constructed using UL1061 discrete wires for ease of design
• Pin to pin map configurations reduce the need for cable layout design
• Compact space saving connector design with a small 1.25 mm pitch
• Friction locks on connector housings for secure mating connection to header
• Available in a Range of cable lengths

Constructed using UL1061 discrete wires for ease of design
Pin to pin map configurations reduce the need for cable layout design
Compact space saving connector design with a small 1.25 mm pitch
Friction locks on connector housings for secure mating connection to header
Available in a Range of cable lengths

Applications

These PicoBlade wire-to-board cable assemblies are ideal for use in Prototype design and global application. Applications include home entertainment, home appliances and mobile devices, commercial vehicles, industrial process controls and medical.

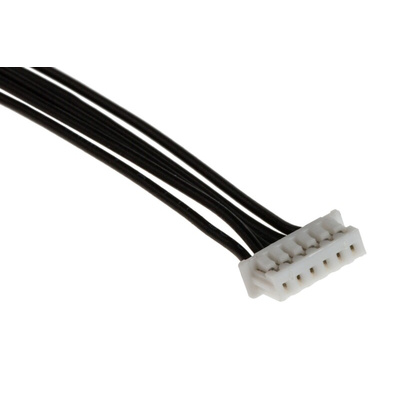

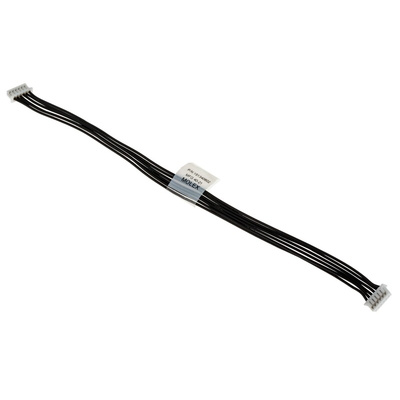

Molex Wire-to-Board Cable Assembly, 150mm Length, 6 Way - PicoBlade Series - 15134-0602

Choose this robust wire-to-board cable assembly from Molex for reliable signal transmission on your PCBs. You can easily send and receive power and data on six circuits, effectively cutting down on the need for extra cabling. The unit's connectors are made of phosphor bronze material that's highly conductive, so you enjoy a stable and reliable connection. A short cable length of 150mm eliminates clutter and is ideal for use in small spaces. Thanks to its 125V voltage rating, this is a suitable choice for use in low-voltage applications.

• Wide operating temperature range of -40°C to +85°C for use in challenging conditions
• Polyester connector housing for impact resistance and insulation from electric shocks
• Light weight of 1.7g so it's easy to handle and won't put strain on your equipment
• Friction locks on connector housings for a firm, vibration-proof mating link to the PCB header

Applications

• Personal computers
• Automotive industries
• Telecommunication stations

Is this cable assembly flame-resistant?

This cable assembly's housing is made of self-extinguishing materials, so it'll stop burning within a short time in the event of a fire. This makes it safe to use in volatile areas.

1.25mm Wire to Board - Molex PicoBlade™

PicoBlade™ Standard Cable Assemblies

PicoBlade Wire to Board Cable Assembly, 6P - Drawing
