EOS Switching Power Supply, ULP275-1324, 24V dc, 6.67A, 275W, 1 Output, 390 V dc, 80 → 264 V ac Input Voltage, Источник питания

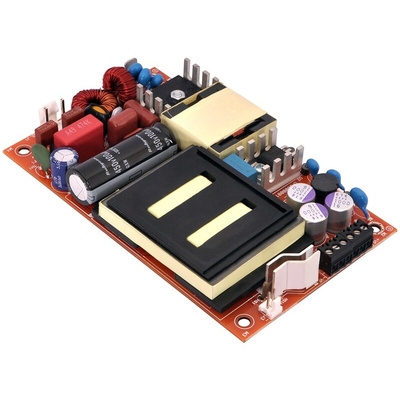

275W Power Supply Switch Mode ULP275 Series

From EOS, the ULP275 (Ultra low profile) series are 275 W, open frame, switch mode power supplies. These Power Supplies have a universal input and are a compact 5 x 3 inches in size and offer a high efficiency up to 92%. The ULP275 are suitable for industrial and automation applications.

5 x 3 x 0.75 Inches Form factor
Provides up to 275 W with Forced Air Cooling
Up to 92% efficiency
-40° to 70° operating temperature
12 V / 0.5 A Fan Output, Thermal Shut-Down feature
Standby Power <0.5 W
Cover kit accessory available, RS Stock no 125-0840

Standards

EN60950-1, IEC60950-1 (ed.2) , UL 60950 (ed.2), CSA C22.2 No.60950-1 (ed.2), Class1 SELV

Approvals

Nemko, UL, C-UL

Datasheet
