EOS Switching Power Supply, MULP180-1312, 12V dc, 9.37A, 180W, 1 Output, 390 V dc, 80 → 264 V ac Input Voltage, Источник питания

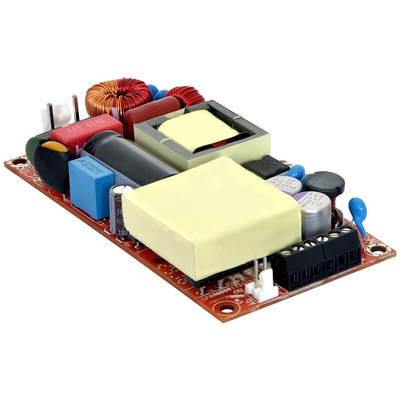

180W Power Supply Switch Mode MULP180 Series

The EOS Power MULP180 is a series of 180 W, open frame, medical switch mode power supplies. This series have a universal input, and are a compact 3 x 2 inches in size and offer a high efficiency up to 92%. Also offers the possibility to use standard 2 x 4 and 3 x 5 inches open frame medical and commercial grade power solutions in height restricted environments, without having to change mechanical footprints while increasing efficiencies.

4 x 2 x 0.75 inches Form factor
Provides up to 180 W with Forced Air Cooling
Up to 92% efficiency
-40° to 70° operating temperature
Dual fusing
12 V / 0.5A Fan Output, Thermal Shut-Down feature
Standby Power <0.5 W
Medical (BF) Safety Approvals
Cover Kit available RS Stock Number 125-0848

Standards

EN60601-1, IEC 60601-1 (ed.3), ANSI / AAMI ES 60601 - 1, CSA C22.2 No. 60601-1

Approvals

Nemko, UL, C-UL

Datasheet
