LFMWLP350-1001-EX, EOS Switching Power Supply, 12V dc, 15A, 350W, 1 Output, 390 V dc, 90 → 264 V ac Input Voltage, Источник питания

EOS 350W AC/DC Medical Power Supply - LFMWLP350 Series

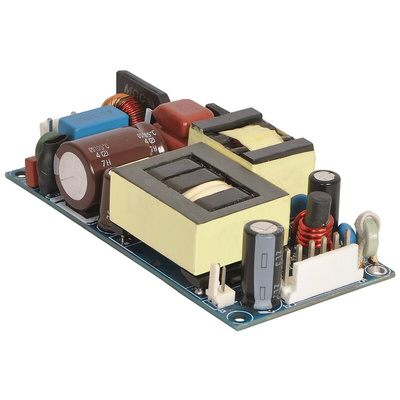

The Eos Power LFMWLP350 is a series of 350W, open frame, medical switch mode power supplies, these EOS Power Supplies have a universal input, they are compact 5x3 inches in size and offer a high efficiency up to 94%. The LFMWLP350 series of medical switch mode power supplies are suitable for applications including dental and laboratory equipment and medical instruments.

5 x 3 x 1 Inches Form factor
350W with Forced Air Cooling and 200W Convection Cooling
Efficiencies up to 94%
-40° to 70° operating temperature
12V Fan Output, Thermal Shut-Down feature
>800K Hours MTBF
Standby Power ˂0.5W
Medical (BF) safety approvals

Standards

EN60601-1, IEC60601-1 (ed.3), ANSI/AAMI ES60601-1, CSA C22.2 No.60601-1

Approvals

Nemko, UL, cUL

Datasheet
