NSYDLS24, Schneider Electric Thalassa DLS Series RAL 7032 Modular Distribution Chassis

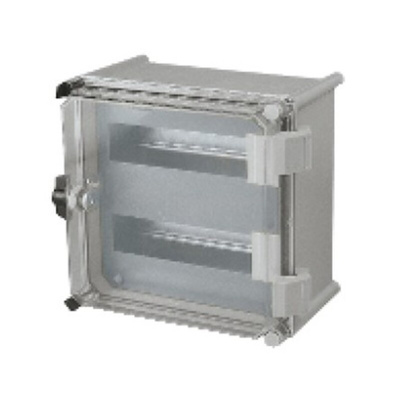

Thalassa PLS Compatible NSYDLS24 Multi-Purpose DLS Modular Distribution Chassis.

From Schneider Electric this is the DLS Modular Distribution Chassis compatible or the Thalassa PLS range of general purpose enclosures. The multi-purpose enclosure chassis mounts onto the front of the enclosure by 2 x 35 mm DIN rail and a front cut-out panel plate. The NSYDLS24 Multi-Purpose DLS Modular Distribution Chassis is one of a range of Thalassa PLS General Purpose mounting accessories available from Schneider Electric with all the added benefits and protection you expect from a Universal enclosure.

Features and Benefits.

• Thalassa DLS Chassis.


• Compatible with Thalassa PLS General Purpose Enclosures.


• Mounts onto the front of the enclosure.


• The front panel is Self-Extinguishing (added protection).


• Chassis is made from Galvanised steel (chassis and rails).


• Colour is grey RAL 7032.


• Cut out plate.


• 2 x Cut outs.


• What is Included?


• 1 x Chassis structure, 1 x Front panel, 2 x 35 mm DIN rail.

Thalassa PLS General Purpose Insulating Enclosure Modular Boxes.

The Thalassa PLS range are multi-purpose enclosures from Schneider Electric have a fibreglass reinforced polyester body. It has mounting bosses already moulded with M6 inserts. The lid is secured with 4, 6 or 8 screws according to size. The Thalassa PLS general purpose enclosure can be connected horizontally and vertically to form sets for different functions.

Thalassa PLS Range Features and Benefits

• Total insulation for realisation of Class II equipment


• IP65 and IK09 rated Enclosures


• UL/CUL certification


• Self-extinguishing 960° test


• Suitable for indoor or outdoor use


• No Electrical contact risk


• Resistant to harsh atmospheres


• Can be used in a large temperature range


• Easy to machine and the machining does not produce corrosion


• Halogen free


• Long life lasting without maintenance


• Locking system is outside of the protected area

• Perforated 1 piece chassis plate and 4 stainless steel fixing lugs are available separately
