1492-SPM2B160, Allen Bradley 1492 1492-SPM MCB, 2P, 16A Curve B, 277V AC, 96V DC, 10 kA Breaking Capacity

Allen Bradley 1492 SP Series Miniature Circuit Breakers – Type B

The 1492-SPM Type B general purpose Miniature Circuit Breakers by Allen Bradley offer excellent protection for electrical circuits. With this series 1, 2, and 3 Pole units are available so that you can find the perfect MCB to suit your application.

The 1492-SPM series of MCB’s are current limiting and have an instantaneous break time. These models have Type B Tripping characteristics. They are IP20 finger-safe and they also have dual terminals for wiring and bus bar flexibility. Installation is simple as these MCB’s can be DIN rail mounted, and up to six accessories can be fixed on the same circuit breaker to provide a complete electrical safety system. The 1492-SPM series of circuit breakers reduces downtime from nuisance tripping due to their enhanced shock and vibration resistance.

A Type B miniature circuit breaker will trip instantly at a rate of three to five times its rated current. These MCB’s are often used for small inductive loads where switching surges are very low. They are frequently used in residential or light commercial applications.

Features and Benefits:

• Easy and fast installation via DIN rail mounting
• Instantaneous break time
• Available in 1, 2 or 3 pole versions
• Thermal-magnetic tripping mechanism
• Clear visibility of contact state due to indicator window: red for closed, green for open
• Environmentally friendly - RohS compliant and fully recyclable
• Screw Terminals
• Can function in extreme ambient conditions due to 40 ˚C (104 °F) calibration temperature

Certifications:

UL Recognised
CSA Certified
CE Marked
CCC Certified
VDE Certified
RoHS Compliant

Standards:

UL 1077
CSA C22.2 No. 235
EN 60947-2
GB 14048.2

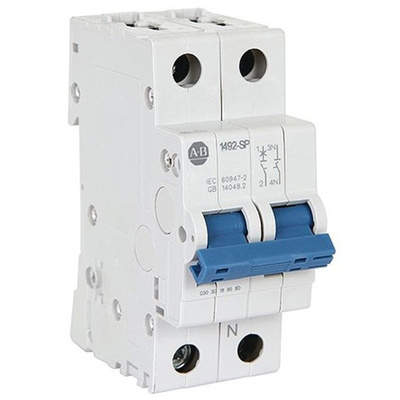

Allen Bradley Miniature Circuit Breaker, Type B, 16A Current Rating - 1492-SPM2B160

This 2-pole miniature circuit breaker, from Rockwell Automation's Allen Bradley range, stops your electrical equipment from short-circuiting due to current overloads. When the switch reaches its 10kA (kiloamps) maximum current allowance it uses a thermal-magnetic mechanism to trip the circuit. An IP20 (ingress protection) rating indicates the device is resistant to dust or objects greater than 12mm in size, and is also touch-proof, for enhanced user safety. As a type B unit, it's designed for use with resistive or small inductive loads in residential or light commercial settings.

Features & Benefits

• Indicator window makes contact state clearly visible, showing red when closed and green when open
• Screw terminals ensure connections are secure
• Mechanical endurance of 20,000 operations for long-lasting use
• Quick and simple DIN rail mounting style
• Ambient temperature rating of -25°C to +55°C and storage temperature rating of -40°C to +70°C for use in demanding environments

Standards and Certifications

• UL (Underwriters' Laboratories)
• CSA (Canadian Standards Association)
• VDE (Verband der Elektrotechnik)
• CE (Conformitè Europëenne)

What are the dimensions of this miniature circuit breaker?

This miniature circuit breaker measures 88 (D) x 75 (W) x 35mm (L), making it suitable for use in small appliances or busy setups.

Allen Bradley MCBs

Datasheet

Line Drawing - 1492-SPM2

Selection Guide - Control Circuit and Load Protection
