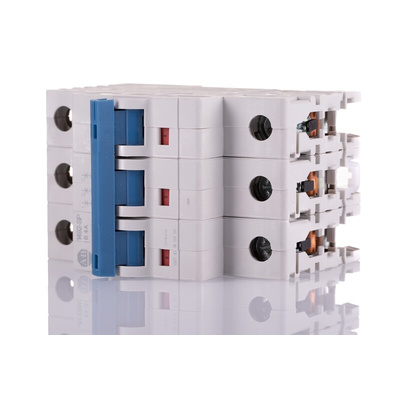

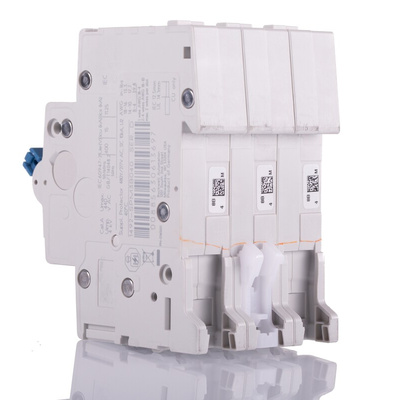

1492-SPM3B040, Allen Bradley 1492 1492-SPM MCB, 3P, 4A Curve B, 277V AC, 10 kA Breaking Capacity

Allen Bradley 1492 SP Series Miniature Circuit Breakers – Type B

The 1492-SPM Type B general purpose Miniature Circuit Breakers by Allen Bradley offer excellent protection for electrical circuits. With this series 1, 2, and 3 Pole units are available so that you can find the perfect MCB to suit your application.

The 1492-SPM series of MCB’s are current limiting and have an instantaneous break time. These models have Type B Tripping characteristics. They are IP20 finger-safe and they also have dual terminals for wiring and bus bar flexibility. Installation is simple as these MCB’s can be DIN rail mounted, and up to six accessories can be fixed on the same circuit breaker to provide a complete electrical safety system. The 1492-SPM series of circuit breakers reduces downtime from nuisance tripping due to their enhanced shock and vibration resistance.

A Type B miniature circuit breaker will trip instantly at a rate of three to five times its rated current. These MCB’s are often used for small inductive loads where switching surges are very low. They are frequently used in residential or light commercial applications.

Features and Benefits:

• Easy and fast installation via DIN rail mounting
• Instantaneous break time
• Available in 1, 2 or 3 pole versions
• Thermal-magnetic tripping mechanism
• Clear visibility of contact state due to indicator window: red for closed, green for open
• Environmentally friendly - RohS compliant and fully recyclable
• Screw Terminals
• Can function in extreme ambient conditions due to 40 ˚C (104 °F) calibration temperature

Certifications:

UL Recognised
CSA Certified
CE Marked
CCC Certified
VDE Certified
RoHS Compliant

Standards:

UL 1077
CSA C22.2 No. 235
EN 60947-2
GB 14048.2

Allen Bradley MCB, 50/60Hz Rated Frequency, 4kV Rated Surge Withstand Voltage - 1492-SPM3B040

Protect your electrical circuit from short circuits and overloads with this MCB from Rockwell Automation's Allen Bradley range. It has type B tripping characteristics, meaning that it trips at 3 to 5 times its rated current of 4A, making it suitable for use with sensitive systems. A 4A-rated current means you can use it on low-current-consuming appliances. Thermoplastic housing provides resistance to mechanical impact, making this a practical choice for harsh environments.

• Mechanical endurance of 20,000 operations for long-term performance
• Wide operating temperature range of -25°C to +55°C for use in challenging conditions
• Compact dimensions of 75 (W) x 53 (L) x 88mm (D) makes it ideal for installation in enclosures with limited space
• Red and green indicators for easy identification of the contact position
• DIN rail mounting for fast and easy installation

Standards and Certifications

• UL Recognised
• CSA, VDE and CCC Certified
• CE Marked
• GB 14048.2
• UL 1077
• CSA C22.2 No. 235
• EN 60947-2

Is this MCB finger-safe?

Yes. The unit's IP40 rating, when installed in an enclosure with a cover, indicates it's protected from tools and objects larger than 1mm in size, including your fingers.
