1492-SPM3B100, Allen Bradley 1492 1492-SPM MCB, 3P, 10A Curve B, 277V AC, 10 kA Breaking Capacity

Allen Bradley 1492 SP Series Miniature Circuit Breakers – Type B

The 1492-SPM Type B general purpose Miniature Circuit Breakers by Allen Bradley offer excellent protection for electrical circuits. With this series 1, 2, and 3 Pole units are available so that you can find the perfect MCB to suit your application.

The 1492-SPM series of MCB’s are current limiting and have an instantaneous break time. These models have Type B Tripping characteristics. They are IP20 finger-safe and they also have dual terminals for wiring and bus bar flexibility. Installation is simple as these MCB’s can be DIN rail mounted, and up to six accessories can be fixed on the same circuit breaker to provide a complete electrical safety system. The 1492-SPM series of circuit breakers reduces downtime from nuisance tripping due to their enhanced shock and vibration resistance.

A Type B miniature circuit breaker will trip instantly at a rate of three to five times its rated current. These MCB’s are often used for small inductive loads where switching surges are very low. They are frequently used in residential or light commercial applications.

Features and Benefits:

• Easy and fast installation via DIN rail mounting
• Instantaneous break time
• Available in 1, 2 or 3 pole versions
• Thermal-magnetic tripping mechanism
• Clear visibility of contact state due to indicator window: red for closed, green for open
• Environmentally friendly - RohS compliant and fully recyclable
• Screw Terminals
• Can function in extreme ambient conditions due to 40 ˚C (104 °F) calibration temperature

Certifications:

UL Recognised
CSA Certified
CE Marked
CCC Certified
VDE Certified
RoHS Compliant

Standards:

UL 1077
CSA C22.2 No. 235
EN 60947-2
GB 14048.2

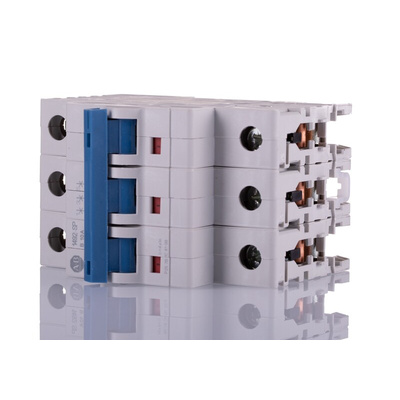

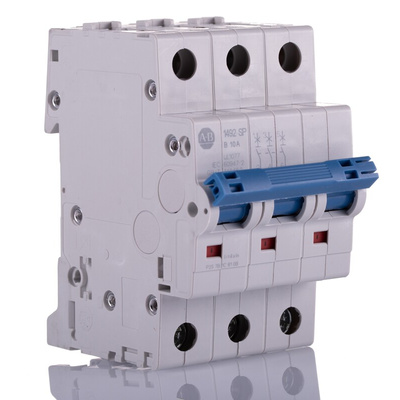

Allen Bradley MCB, Screw Terminals, 2kV Dielectric Test Voltage - 1492-SPM3B100

Are you looking for a compact circuit protection solution for your electrical systems? Choose this MCB from Rockwell Automation's Allen Bradley range. With dimensions of 88 (H) x 69 (D) x 17.5mm (W), you can comfortably install it in setups with limited space. The unit works by monitoring your circuit and cutting power in the event of a short circuit or overload, preventing electric shocks and equipment damage. As a device with type B tripping characteristics, it trips instantaneously, making it useful for light industrial and commercial applications.

• Screw termination makes installation simple, saving time and effort
• Compatible with cable conductor and bus bar connections for versatility
• Thermoplastic housing for durability and impact resistance
• Electrical endurance of 6,000 operating cycles on AC and DC networks for long-term performance
• AC voltage rating of 277V for use in low-voltage systems

Standards and Certifications

• UL 1077
• CSA C22.2 No. 235
• EN 60947-2
• GB 14048.2
• CE Marked
• VDE, CCC and CSA Certified

How do I mount this MCB?

This MCB is designed for DIN rail mounting and comes with fast clips for simple and tool-free installation.
