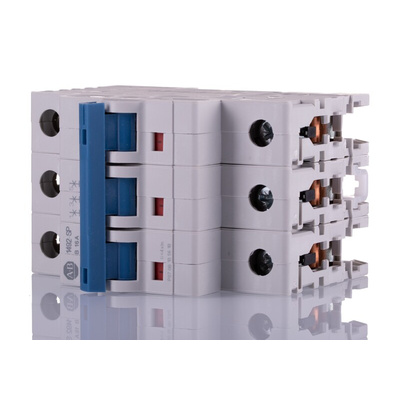

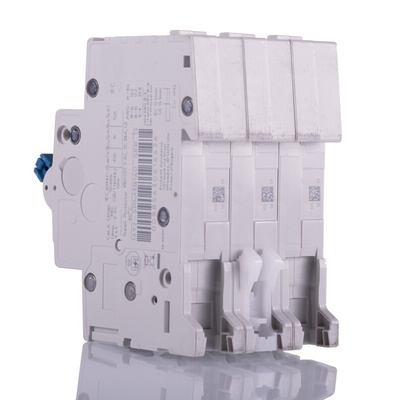

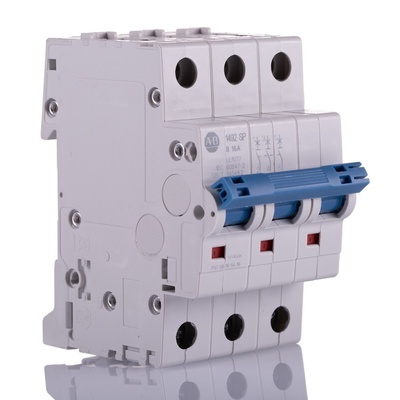

1492-SPM3B160, Allen Bradley 1492 1492-SPM MCB, 3P, 16A Curve B, 277V AC, 10 kA Breaking Capacity

Allen Bradley 1492 SP Series Miniature Circuit Breakers – Type B

The 1492-SPM Type B general purpose Miniature Circuit Breakers by Allen Bradley offer excellent protection for electrical circuits. With this series 1, 2, and 3 Pole units are available so that you can find the perfect MCB to suit your application.

The 1492-SPM series of MCB’s are current limiting and have an instantaneous break time. These models have Type B Tripping characteristics. They are IP20 finger-safe and they also have dual terminals for wiring and bus bar flexibility. Installation is simple as these MCB’s can be DIN rail mounted, and up to six accessories can be fixed on the same circuit breaker to provide a complete electrical safety system. The 1492-SPM series of circuit breakers reduces downtime from nuisance tripping due to their enhanced shock and vibration resistance.

A Type B miniature circuit breaker will trip instantly at a rate of three to five times its rated current. These MCB’s are often used for small inductive loads where switching surges are very low. They are frequently used in residential or light commercial applications.

Features and Benefits:

• Easy and fast installation via DIN rail mounting
• Instantaneous break time
• Available in 1, 2 or 3 pole versions
• Thermal-magnetic tripping mechanism
• Clear visibility of contact state due to indicator window: red for closed, green for open
• Environmentally friendly - RohS compliant and fully recyclable
• Screw Terminals
• Can function in extreme ambient conditions due to 40 ˚C (104 °F) calibration temperature

Certifications:

UL Recognised
CSA Certified
CE Marked
CCC Certified
VDE Certified
RoHS Compliant

Standards:

UL 1077
CSA C22.2 No. 235
EN 60947-2
GB 14048.2

Allen Bradley MCB, 14 to 8AWG Cable Size Range, 4kV Rated Impulse Withstand Voltage - 1492-SPM3B160

This MCB from Rockwell Automation's Allen Bradley range offers reliable protection from overcurrents and short circuits. With a 16A current rating, it's designed for use with devices that consume high current levels. Its 3-pole configuration means that it's a practical choice for 3-phase electrical circuits. Thermoplastic housing provides impact and abrasion resistance, making this breaker suitable for use in harsh environments. Its terminals are finger-safe and located away from the reach of your hands to prevent accidental contact with live parts, ensuring safe operation. You'll find devices like this used in robotics systems.

• Type B tripping characteristics make it useful for equipment with low switching surges
• 10kA breaking capacity to handle high current spikes
• Mountable in any position for versatility
• Compact dimensions of 88 (H) x 69 (D) x 17.5mm (W) for use in setups with limited space

Standards and Certifications

• CE
• CCC
• CSA
• UL
• VDE

What mechanical endurance rating does this MCB have?

This MCB has a mechanical endurance of 20,000 operations, assuring you of reliable long-term performance.
