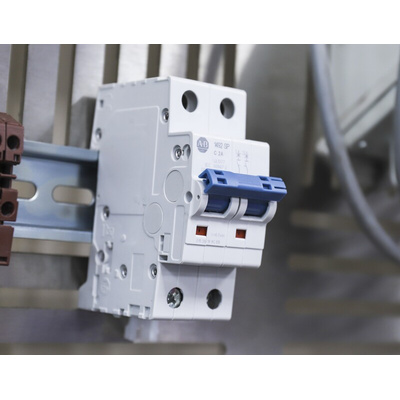

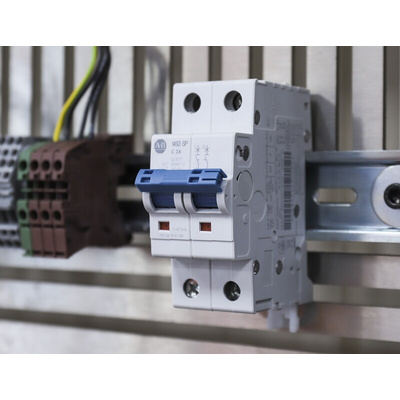

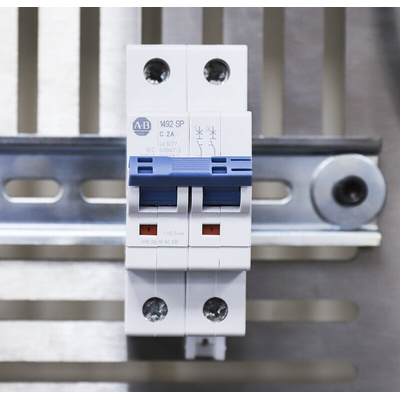

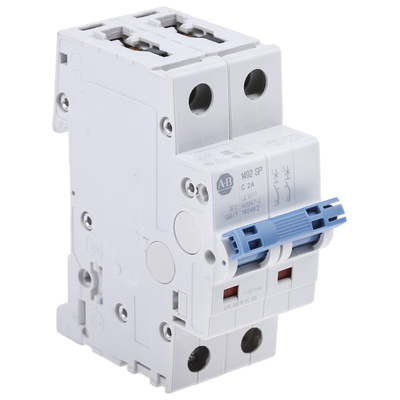

1492-SPM2C020, Allen Bradley 1492 1492-SPM MCB, 2P, 2A Curve C, 277V AC, 96V DC, 10 kA Breaking Capacity

Allen Bradley 1492 SP Series Miniature Circuit Breakers – Type C

Experience high performance and exceptional protection for electrical circuits with the general purpose 1492-SPM Type C Miniature Circuit Breakers by Allen Bradley.

These 1492-SPM MCB’s have type C tripping and fast breaking time to provide a higher level of safety for your application. They include screw terminals, are IP20 finger safe, and can be DIN rail mounted for optimal convenience. They are current-limiting and are available in 1, 2 or 3 pole versions, offering more versatility to meet your requirements. They also have dual terminals for wiring and bus bar flexibility. These units have excellent shock and vibration resistance which helps to prevent nuisance tripping, avoiding unnecessary downtime. Up to six accessories can be installed on the same circuit breaker to enable easy optimisation of your safety system.

Type C MCB’s are suitable for use in commercial and light industrial applications, such as fluorescent lighting and small electric motors, and are designed to trip at currents between five and ten times their rated load.

Features and Benefits:

• Available in 1, 2 or 3 pole versions to suit your application needs
• DIN Rail mountable in any position to ensure easy installation
• Dependable protection for circuits due to instantaneous break time

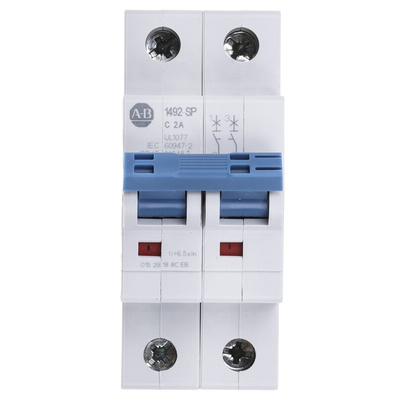

• Indicator window allows clear visibility of contact state: red for closed, green for open
• Screw Terminals
• Thermal-magnetic tripping mechanism
• Can be used in extreme ambient conditions
• RohS compliant and fully recyclable, offering a more environmentally friendly solution

Certifications:

UL Recognised
CSA Certified
CE Marked
CCC Certified
VDE Certified
RoHS Compliant

Standards:

UL 1077
CSA C22.2 No. 235
EN 60947-2
GB 14048.2

Allen Bradley Mini Circuit Breaker, 96V DC, 2A - 1492-SPM2C020

Benefit from reliable electrical circuit protection with this thermal MCB (magnetic circuit breaker) from Rockwell Automation's Allen Bradley range. Its fast tripping time offers an almost instant reaction to surges or power faults, enhancing the overall safety of your control system. An indicator window lets you see quickly whether the circuit breaker's contacts are open or closed. This versatile device is an ideal choice for protecting electric motors or lighting circuits in light-industrial and commercial applications.

Features and Benefits

• Robust screw terminals stand up well to vibration and shock to ensure conductors remain firmly wired
• Hard-wearing and suitable for use in demanding conditions
• Environmentally friendly as the device is fully recyclable
• Up to six accessories can be mounted on one circuit breaker for easy optimisation of your safety system

Standards and certifications

• UL (Underwriters' Laboratories)
• CSA (Canadian Standards Authority)
• CE (Conformitè Europëenne)
• CCC (China Compulsory Certificate)
• VDE (Verband Deutscher Elektrotechniker)
• RoHS (Restriction of Hazardous Substances)

Rockwell Automation is a global leader in industrial automation and digital transformation, and brings smart manufacturing to life. With a long legacy of creating Allen-Bradley® integrated control and information solutions, we help make you as productive as possible. Our portfolio of sensing, safety and motor control products can support your move towards smart machine applications. Allen-Bradley® IO-Link sensors are data-enabled and communicate with all field buses, providing diagnostic and health information about the device before a machine stops, and enabling quick production changeovers through fast parameter downloads from PLCs into the device. This reduces machine downtime and increases manufacturing OEE. For safety components, products with built-in diagnostics simplify the set-up of the smart device, and reduce maintenance, leading to a more efficient, machine data-driven approach.

How does a thermal magnetic circuit breaker work?

Thermal magnetic circuit breakers contain a bimetallic strip that reacts to abnormal current levels by heating up and bending. This causes its switching mechanism to trip instantaneously and interrupt current flow to protect a circuit.
