1492-SPM2D060, Allen Bradley 1492 1492-SPM MCB, 2P, 6A Curve D, 277V AC, 96V DC, 10 kA Breaking Capacity

Allen Bradley 1492 SP Series Miniature Circuit Breakers – Type D

Safeguard your electrical circuits with the general purpose 1492-SPM Type D Miniature Circuit Breakers by Allen Bradley. These circuit breakers offer high performance and ensure enhanced protection for equipment.

These MCB’s have instantaneous breaking time and feature type D tripping. They are available in 1, 2 and 3 pole versions to suit your application. The 1492-SPM miniature circuit breakers are current limiting and can be easily mounted on a DIN rail. These units are also IP20 finger-safe for greater protection, and they have dual terminals for wiring and bus bar flexibility. These dependable MCB’s help to prevent downtime from nuisance tripping as they also have superior shock and vibration resistance. The 1492-SPM series allows installation of up to six accessories on the same circuit breaker so that you can optimise your safety system with ease.

Type D MCB’s are usually used for specific industrial and commercial applications with very high inductive loads and where high inrush current frequently occurs, for example with x-ray machines, large winding motors, transformers, and welding equipment. A type D MCB will trip instantly at a rate of ten to twenty-five times its rated current.

Features and Benefits:

• Instantaneous break time

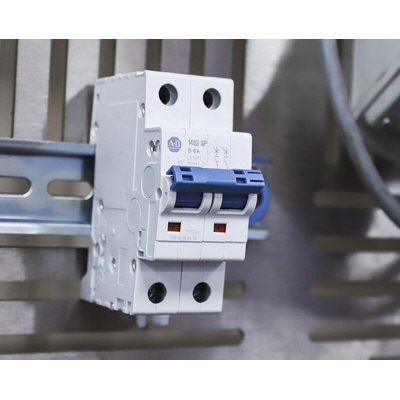

• Can be DIN rail mounted for fast and simple installation
• Available in 1, 2 or 3 pole versions to meet your requirements
• Clear visibility of contact state due to indicator window: red for closed, green for open
• Thermal-magnetic tripping mechanism
• Screw Terminals
• Environmentally friendly - RohS compliant and fully recyclable
• Usable even in extreme ambient conditions due to 40 ˚C (104 °F) calibration temperature

Certifications:

UL Recognised
CSA Certified
CE Marked
CCC Certified
VDE Certified
RoHS Compliant

Standards:

UL 1077
CSA C22.2 No. 235
EN 60947-2
GB 14048.2

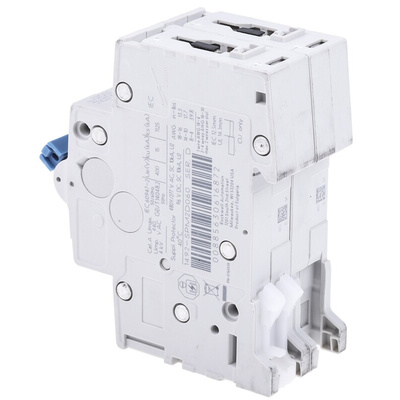

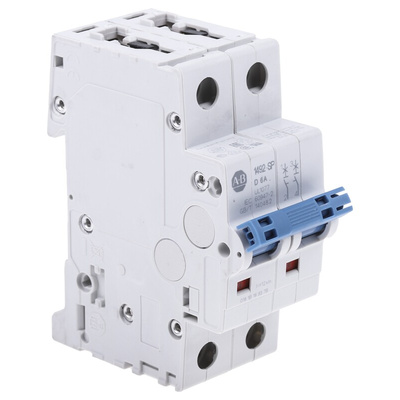

Allen Bradley Mini Circuit Breaker, 10kA Breaking Capacity, 6A Current Rating - 1492-SPM2D060

Protect your electrical equipment with this miniature circuit breaker (MCB) from Rockwell Automation's Allen Bradley range. This safety device automatically switches a circuit off when an overload or fault occurs. It has integrated light-emitting diode (LED) indicators that help you easily identify when the circuit has been switched off or on. As a Type-D device, it trips at 10 to 20 times its operating current. This makes it suitable for applications with high inductive loads and where high inrush frequency occurs, such as x-ray machines, transformers and welding equipment.

What is an MCB?

• DIN rail mounted for fast and simple installation• 2-pole configuration controls two circuits to reduce wiring and enhance space efficiency• Toggle-switch reset actuator quickly reactivates after a fault is cleared• Compact dimensions of 88 (D) x 35 (L) and 75mm (W) to fit into small spaces

Standards and Certifications

• CE (Conformité Européenne)• CCC (China Compulsory Certificate)• VDE (Association for Electrical, Electronic & Information Technologies)

Rockwell Automation is a global leader in industrial automation and digital transformation, and brings smart manufacturing to life. With a long legacy of creating Allen-Bradley® integrated control and information solutions, we help make you as productive as possible. Our portfolio of sensing, safety and motor control products can support your move towards smart machine applications. Allen-Bradley® IO-Link sensors are data-enabled and communicate with all field buses, providing diagnostic and health information about the device before a machine stops, and enabling quick production changeovers through fast parameter downloads from PLCs into the device. This reduces machine downtime and increases manufacturing OEE. For safety components, products with built-in diagnostics simplify the set-up of the smart device, and reduce maintenance, leading to a more efficient, machine data-driven approach.

Can this circuit breaker stop a fire?

No, this product can't stop a fire. However, it can help to reduce the level of damage a fire causes.
