189-AB10, Allen Bradley 30 V dc, 230V ac Auxiliary Release Circuit Trip for use with 1492-D DC Circuit Breaker, 188 Regional Circuit Breakers

1492 SP Series - Accessories

Professional range of Allen Bradley general purpose MCBs accessories from the 1492 series. Accessories include auxiliary contacts, single phase busbars, busbar end caps, protective shrouds, shunt trips and terminal power feeds. All accessories are highly reliable and excellent quality.

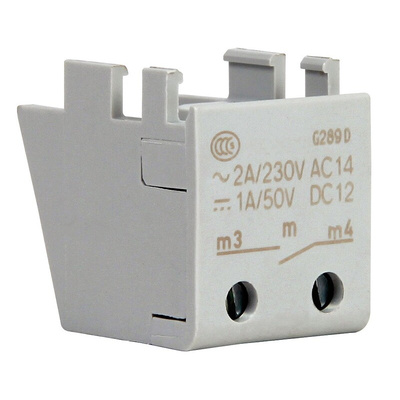

Allen Bradley Circuit Trip, NO Configuration, 230V AC Rated Operational Voltage - 189-AB10

Need a circuit trip to supplement your existing circuit breaker? Choose this device from Rockwell Automation’s Allen Bradley range. It provides additional support for an existing circuit breaker to help keep you and your equipment safe from the risks of ground, thermal overload and short-circuit faults. Installation is easy, as you simply clip it onto the bottom of a DIN-mounted MCB. The device's 230V AC-rated operational voltage means it's compatible with standard mains electricity.

• Bottom-mounting design saves space in your DIN setups
• Resists shock and vibration for safe use in demanding industrial settings
• Withstands surges of up to 4kV without failure for reliable protection
• Operating temperature range between -25°C and +55°C makes it safe to use in demanding environments

Standards and Certifications

• UL 489
• CSA 22.2 No. 5
• IEC Overvoltage Category III
• IEC Insulation Group II (Housing)
• CE

What circuit breakers can I use this circuit trip with?

You can use this component with MCBs from Rockwell Automation’s Allen Bradley 1492-SMP series, as well as RCBs from the 188-J series.

Allen Bradley MCBs

Datasheet

Catalogue - Essential Components

Selection Guide - Control Circuit and Load Protection

Line Drawing - 189-AB01

Instruction Sheet - 189-AB10
