09140023125, HARTING Heavy Duty Power Connector Module, 16A, Female, Han-Modular Series, 2 Contacts

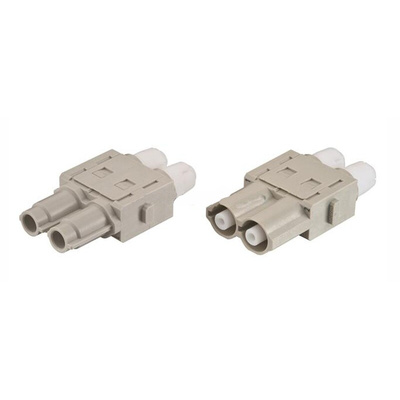

Han HV Module

Male and female Han HV modules for high voltage applications, rated at 16A and can utilise Han E crimp contacts. Each Han HV module accepts two contacts.

Rated at 16A, 5000V
Over 500 mating cycles
Operating temperature range -40 to +125° C

Standards

DINE EN 61984, DIN VDE0115, DIN EN 60664-1

Harting Han® Modular

The Han-Modular series is a system consisting of insert modules and frames into which the insert modules fit. These in turn may be fitted to standard Han® housings. The system allows a variety of insert configurations within the one connector assembly. The Han-Modular system is designed to meet specific requirements of individual customers and offers flexibility when considering connections for signal, power & pneumatic lines when a solution is required with one connector Apart from the quality of the crimp connector, the right choice of the assembly tool is the basic element of a reliable connection. HARTING offers appropriate crimping tools for different levels of automation for all connectors.
