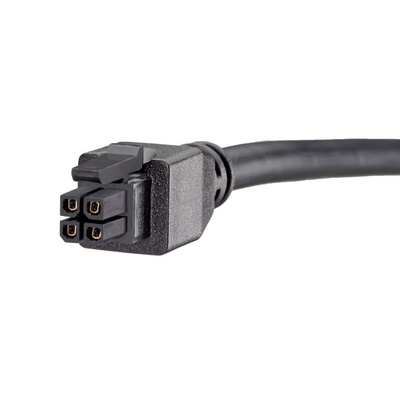

245132-0405, Molex 4 Way Female Micro-Fit 3.0 to 4 Way Female Micro-Fit 3.0 Wire to Board Cable, 500mm

Molex Micro-Fit 3.0 Socket to Socket Cable Assemblies

From Molex, a range of fully moulded female to female cable assemblies from the 3.0mm Micro-Fit family. The double ended patch cables offer a high density low-power interconnect solution for various signal and power applications. The ruggedised assemblies feature polarised housings prohibiting mis-mating and positive latching to prevent accidental disconnection. This range of Molex Micro-Fit cable assemblies mate with 43020 series plug housings and 43045 headers. See typical part numbers 679-5861 (43020 series) and 233-2933 (43045 series) Available in 2, 4, 6, 8 and 10 pole configurations and various lengths.

Features and Benefits

Positive latching on housings
Polarised housings
5.0A current capability
Fully moulded strain relief
Rugged construction
3.0 mm pitch

Applications

Consumer
Vending machines, printers, white goods, security systems
Data and Communication
Routers, servers, storage
Medical
Diagnostic equipment, patient monitor
Sustainable energy
Solar power
Telecommunications
Hubs, power supplies, routers, servers

Molex Wire-To-Board Cable, Tin Contact Plating, 5A Current Rating - Micro Fit 3.0 Series - 245132-0405

When you need a rock-solid power connection for your equipment, choose this wire-to-board cable from Molex. Each end has a female Micro-Fit 3.0 connector that you can use to connect workstations or servers to a power supply. Polarised housings prevent accidental mismating, while positive latching keeps the connection secure, even where vibration or jostling are likely. With a current rating of 5A, this is an ideal choice for common signal applications.

Features & Benefits

• Tin contact plating is corrosion-resistant for enhanced durability
• 250V AC voltage rating for broad compatibility
• 50cm length enables easy equipment positioning
• Fully moulded strain relief protects against bending and twisting
• Operating temperature range between -40°C and +105°C suits harsh conditions

Applications

• IT systems
• Vending machines
• Factory equipment

What kind of plug housings should I use with this wire-to-board cable?

This cable is compatible with plug housings in the 43020 series (such as 679-5861).

Molex Micro-Fit 3.0 Series

Micro-Fit 4 pole cable assembly 0.5m drawing

Micro-Fit 4 pole cable assembly 0.5m part detail

Micro-Fit features and benefits
