245132-0420, Molex 4 Way Female Micro-Fit 3.0 to 4 Way Female Micro-Fit 3.0 Wire to Board Cable, 2m

Molex Micro-Fit 3.0 Socket to Socket Cable Assemblies

From Molex, a range of fully moulded female to female cable assemblies from the 3.0mm Micro-Fit family. The double ended patch cables offer a high density low-power interconnect solution for various signal and power applications. The ruggedised assemblies feature polarised housings prohibiting mis-mating and positive latching to prevent accidental disconnection. This range of Molex Micro-Fit cable assemblies mate with 43020 series plug housings and 43045 headers. See typical part numbers 679-5861 (43020 series) and 233-2933 (43045 series) Available in 2, 4, 6, 8 and 10 pole configurations and various lengths.

Features and Benefits

Positive latching on housings
Polarised housings
5.0A current capability
Fully moulded strain relief
Rugged construction
3.0 mm pitch

Applications

Consumer
Vending machines, printers, white goods, security systems
Data and Communication
Routers, servers, storage
Medical
Diagnostic equipment, patient monitor
Sustainable energy
Solar power
Telecommunications
Hubs, power supplies, routers, servers

Molex Wire-To-Board Cable, 55mm Minimum Dynamic Bend Radius, PVC Jacket - Micro-Fit 3.0 Series - 245132-0420

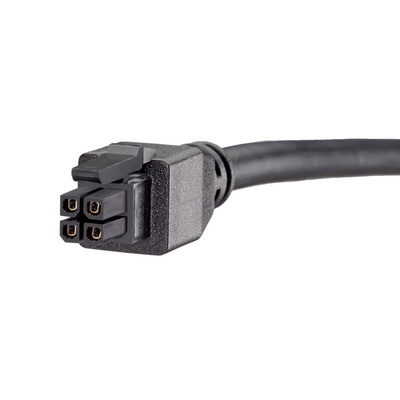

Get power moving in the right direction with this wire-to-board cable from Molex. It has a female Micro-Fit 3.0 connector at both ends, each with 4 contacts. This makes it a handy option for multi-circuit power transfer and means you can handle complex cabling in one handy package. At 2m in length, the cable gives you plenty of room to manoeuvre.

Features & Benefits

• Locks to mating part to ensure a firm connection that won't work loose under vibration
• Nylon connector housing resists impacts and scratches
• Performs reliably in temperatures between -40°C and +105°C

Applications

• HVAC systems
• Gaming consoles
• Aerospace industry

What's the function of the moulded strain relief on this cable?

The strain relief on the connector ends prevents damage to the cable caused by twisting at sharp angles. This keeps everything in working order for the long haul.

Molex Micro-Fit 3.0 Series

Micro-Fit 4 pole cable assembly 2m drawing

Micro-Fit 4 pole cable assembly 2m part detail

Micro-Fit features and benefits
